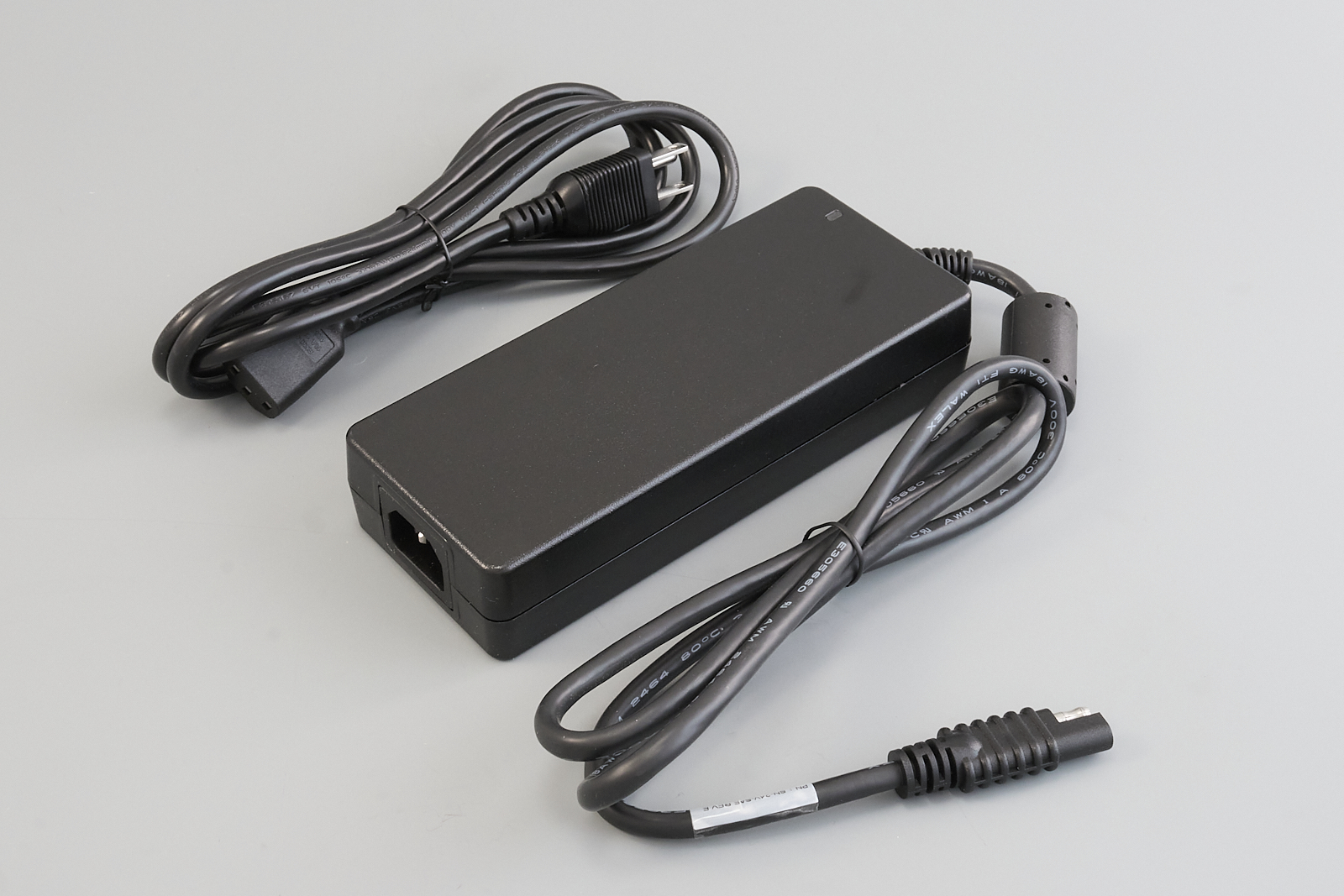

24V Power Power Brick w/SAE Connector

Part Number: SN-24V-SAE

$299.00

VOLUME-BASED PRICING

Quantity	Price
50+	$296.01
100+	$293.02
250+	$290.03
500+	$289.43
1000+	$288.54
2000+	$287.04

Availability:

2 Can Ship Immediately

25 Unit(s) Expected 05/27/2024

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

This 24V 6.3 Amp power supply is used to power SN-926 pass thru charger

Input Voltage: 85 - 264VAC; 100 to 240VAC Nominal
Output Voltage: 24V @ 6.3 Amps
Ripple & Noise: < 120 uV
12V on pin 4,5 Ground Pin 1,2
Size: 6.8" X 2.9" X 1.40"
Weight: 2.1 lbs.
Cable Length: 6 Ft.
5 Year Warranty
Sand and Dust Proof
Operating Temperature: -40C to +60C
Humidity 95%
Operating Temp: 0 to 60C (Full load to 40C derate linearly to 50% load at 60C)
Built in Thermal Shutdown Protection
