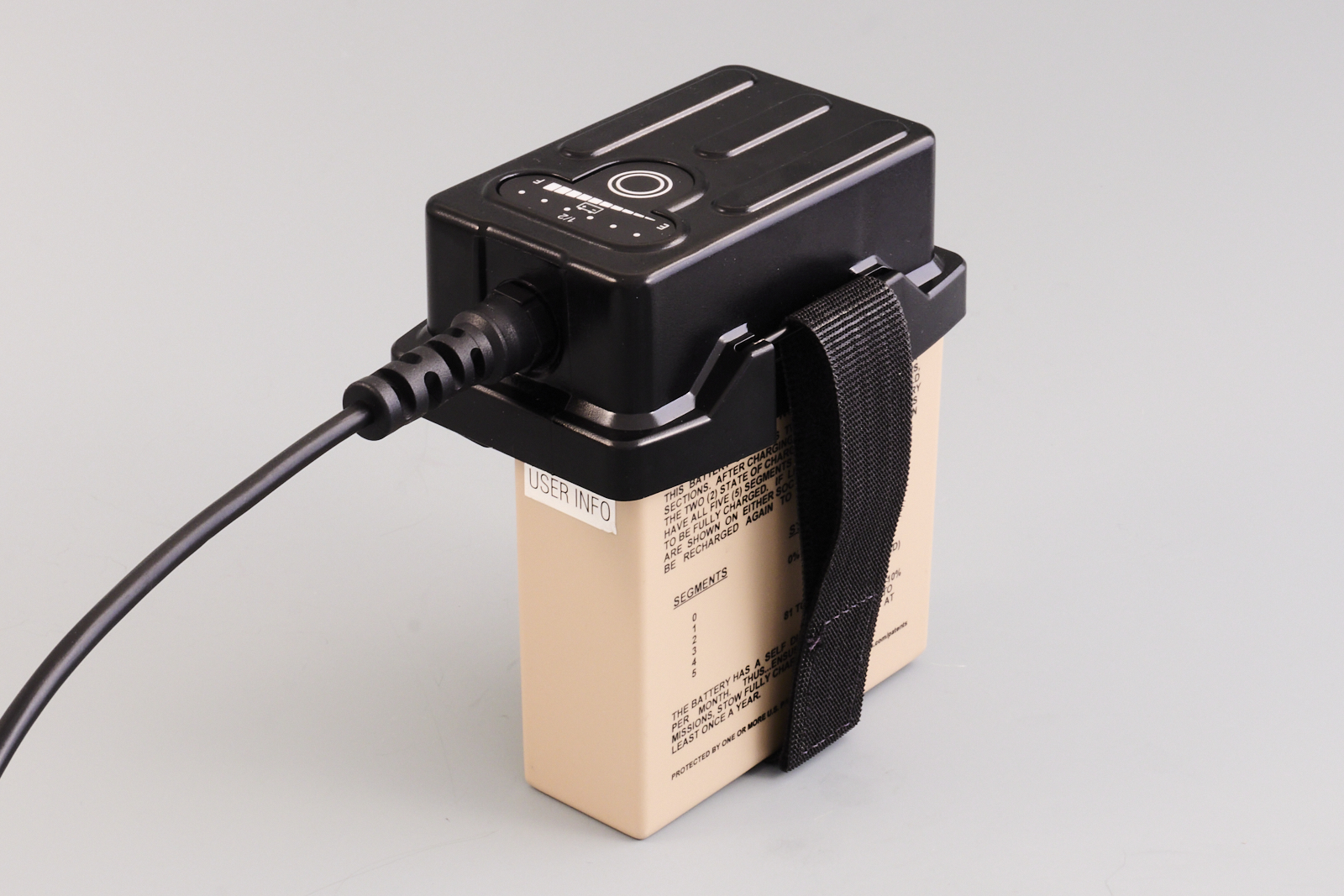

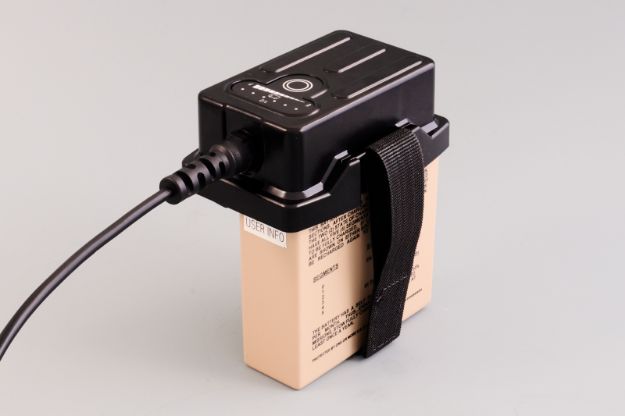

BB-2557 12V Pass Thru Charger, Single input/Output

Part Number: SN-928-C12

$595.00

Availability:

In Production

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Input Charging Voltage: 10.5-19VDC
Output Voltage: 12VDC unregulated)
Current: 15 Amps Continuous
Input power charges battery and simultaneously power load
Automatically switches over to battery power once external power is removed
Switch time: 3 milliseconds from input power to battery power
State of Charge indicator (while charging)
Battery Fuel indicator (when on battery power)
On/Off switch to power down circuit during storage
All SMBus pins populated
Cable length: 6 Feet
Wire: AWG 16/AWG 22, OD: .305"
Weight: 12 oz.
Watertight
Environmental strap impervious to UV light
Operating Temperature: -40°C to +60°C
Rugged Design to absorb impact
Great for use as battery backup
For Rechargeable BB-2557 Li-Ion Batteries
STEP CAD Model available upon request
