12V BB-2590 Battery Eliminator

Part Number: SN-12V-01

NSN: 6130-01-678-2612

$299.50

VOLUME-BASED PRICING

Quantity	Price
50+	$299.50
100+	$299.50
250+	$299.50
500+	$299.50
1000+	$299.50
2000+	$299.50

Availability:

157 Can Ship Immediately

Standard Lead Time:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Overview
Downloads
Custom Solutions

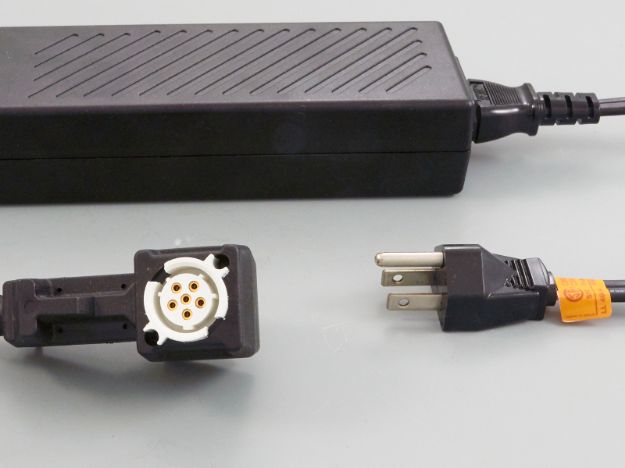

This 12V battery eliminator emulates a BA5590/BB-2590 battery in 12V mode at 12.5 Amps. Suitable for powering the AN/PRC-152, AN/PRC-162. It can also power the AN/PRC-161, or AN/PRC-148 with the SN-200 adapter.

Input Voltage: 85 - 264VAC; 100 - 240VAC Nominal
Output Voltage: 12V @ 12.5 Amps
Ripple & Noise: < 120 uV
12V on pin 4,5 Ground Pin 1,2
Size: 5" X 3" X 1.22"
Weight: 1.75 lbs.
Cable Length: 6 Ft.
5 Year Warranty
Sand and Dust Proof
Operating Temperature: -40C to +60C
Humidity 95%
Operating Temp: 0-60C (Full load to 40C derate linearly to 50% load at 60C)
Built in Thermal Shutdown Protection

DRAWING: SN-12V-01REV.B.PDF
