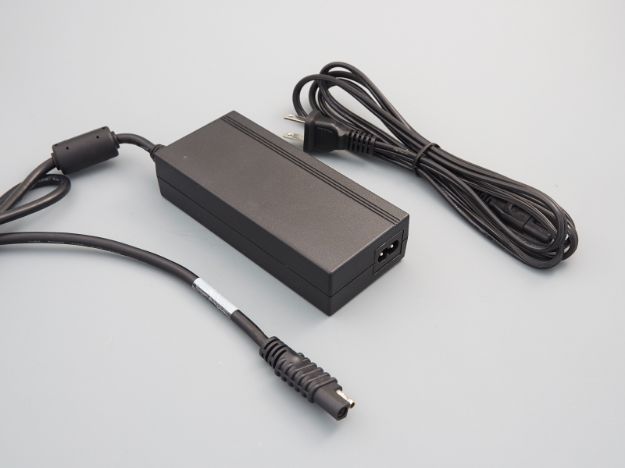

24V 300W Power Supply
The 24V 300W Power Supply w/SAE is a high-performance solution engineered for reliability and efficiency. Specifically designed to power SN-926-xx pass thru chargers, this unit combines compact size with industrial-grade durability. With a sleek, professional build and compliance with CE standards, it’s perfect for both technical applications and demanding environments. Featuring an SAE output connector for versatility, this power supply delivers consistent performance that meets modern energy efficiency requirements.
24V 12.5A Power Supply with SAE Connector
- Versatile SAE Output: Built-in SAE connector ensures compatibility with pass thru chargers like the SN-926-xx series.
- High Efficiency: Rated at Level VI efficiency, reducing wasted power and heat.
- Compact Design: Slim profile (222.0mm x 112.0mm x 45.0mm) saves space in professional setups.
- Thermal Protection: Integrated automatic shutdown protects against overheating and extends lifespan.
- Wide Input Range: Accepts 90~264 VAC input, suitable for both U.S., UK, and EU configurations.
24V Power Supply, SAE Power Supply, Industrial Power Supply
This industrial-grade 24V power supply provides a maximum output of 12.5 Amps at 300W, delivering stable current for high-demand electronics and charging systems. Engineered with thermal shutdown protection, it maintains safety in extended operations, while its compact form factor makes it a go-to choice for technicians who need power efficiency in limited spaces. Whether used in industrial, laboratory, or specialized charger applications, this 24V 300W CE certified power supply ensures dependable performance.
High Efficiency 24V 300W Power Supply
- Part Number: SN-24V-03-SAE
- Input Voltage: 90 ~ 264 VAC
- Output Voltage: 24V
- Output Current (Max): 12.5A
- Power Output: 300W
- No Load Consumption: 500mW (Max)
- Efficiency Level: VI
- Operating Temperature: -30°C ~ 60°C
- Output Connector: BA-5590/BB-2590
- Cord Length: 31.5" (0.8m)
- Input Connector: IEC 320-C14 (UK & EU versions available)
- Dimensions: 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm)
- Approval Agency: CE Certified
- Protection: Built-in Thermal Shutdown
300W AC DC Power Supply, CE Certified Power Supply
Recognized for its industry-standard performance, the SN-24V-03-SAE is a trusted choice among professionals requiring dependable power for chargers and specialized electronics. Its combination of compact design, wide input range, and protective features makes it an industry favorite. With CE certification and proven compatibility for international markets, this 24V 300W power supply stands out as a reliable benchmark in power solutions.
