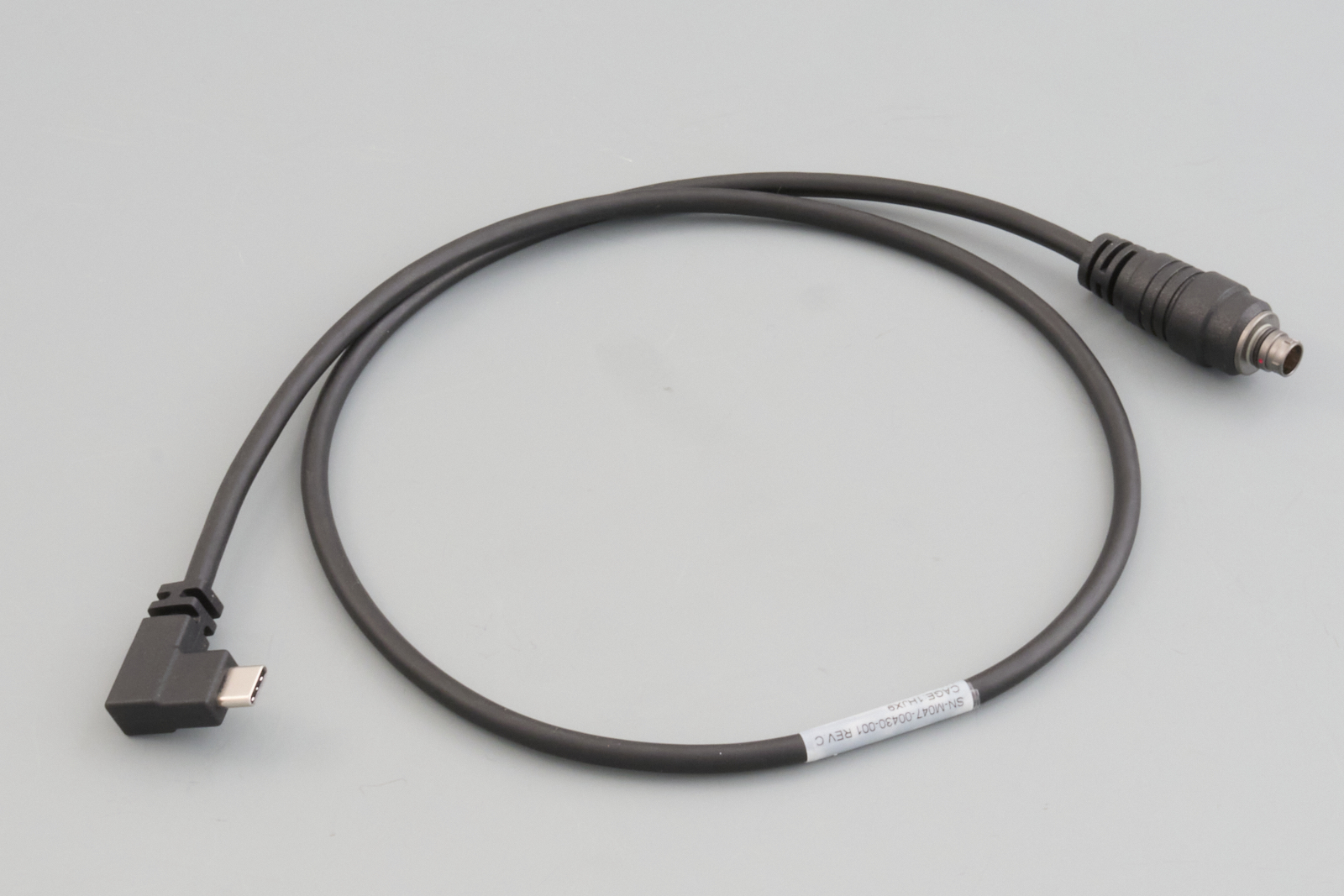

J1/J2 to USB-C Right Angle Data + Charging EUD Cable

Part Number: SN-M047-00430-001

$425.00

VOLUME-BASED PRICING

Availability:

12 Can Ship Immediately

Lead Time for additional units:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Allows users to attach J1 or J2 Port to EUD for USB Programming, Ethernet over USB & Charging

Puts EUD in host-mode and accepts 5V @ 500mA Charge from Radio (can be turned off at radio)
Transmit Ethernet over USB (set to ECM Mode)
USB Programming cable
Fully Over Molded & Shielded
Charge rate pre-set to 5V at 500 mA
Charging can be turned off at the radio
Male ODU 12 Pin Plug with A Keying
Works on both Balck and Red side of L3Harris AN/PRC-163 (J1 or J2 Port)
Puts EUD in host-mode
Length: 30"
Kagswerks cable M047-00430-001 has an option to set the radio to charge the EUD at 1 Amp for 45 minutes, then it reverts back to 5V @ 500mA.
Supplynet cable provides a constant 5V @ 500mA

Please call for custom solutions
