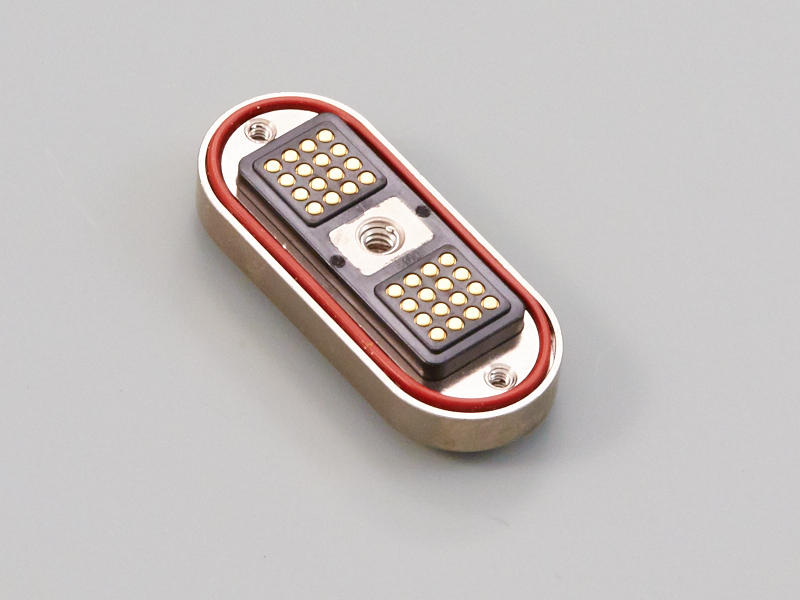

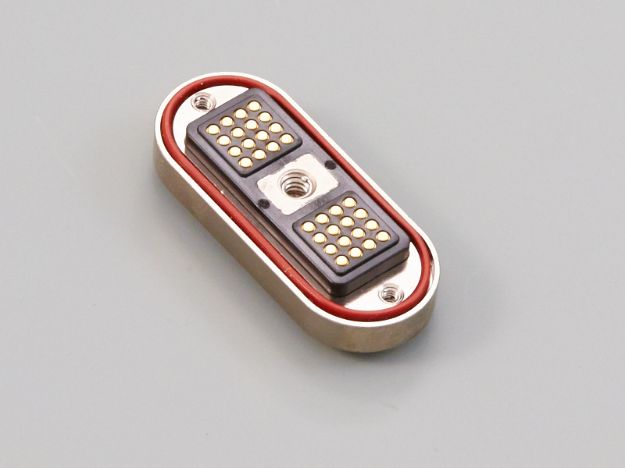

32 Pin Rapidmate Connector w/Pin 8 Tied to Chassis

Part Number: SN-12053-5225-01
Price: $149.50
VOLUME-BASED PRICING
Quantity Price
1+
$149.50
50+
$140.53
100+
$127.08
250+
$116.61
500+
$106.14
1000+
$103.16
2000+
$101.66
5000+
$100.16
629 Can Ship Immediately
6 - 8 Weeks
+ -
+ -

Environmental & Export Classifications

ROHS Status ROHS3 Compliant
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.2000
  • Contact pattern used on AN/PRC-152 and AN/PRC-117G radio
  • Pin 8 Tied to Chassis Ground
  • Pins are unfiltered
  • Available without pins 8 tied to shell (Part # SN-12053-5225-N8)

Environmental Specifications:

  • Operating Temperature Range: -55°C to +125°C
  • Immersion per MIL-STD-810F to a depth of 2 Meters
  • Sand and Dust: Part shall meet the performance requirements of MIL-STD-810E, Method 510.3 procedures I  & II
  • Fungus: per MIL_STD-810E, method 508.4 for 28 days
  • Salt Fog: per MIL-STD-810E, method 509.1, prodcure I
  • Relative Humidity: Min 90% non-condensing RH @ +50°C

Voltage Rating: 100VDC Max @ 125°C

Current Rating: 5 Amps Max

  • Contact pattern used on AN/PRC-152 and AN/PRC-117G radio
  • Pin 8 Tied to Chassis Ground
  • Pins are unfiltered
  • Available without pins 8 tied to shell (Part # SN-12053-5225-N8)

Environmental Specifications:

  • Operating Temperature Range: -55°C to +125°C
  • Immersion per MIL-STD-810F to a depth of 2 Meters
  • Sand and Dust: Part shall meet the performance requirements of MIL-STD-810E, Method 510.3 procedures I  & II
  • Fungus: per MIL_STD-810E, method 508.4 for 28 days
  • Salt Fog: per MIL-STD-810E, method 509.1, prodcure I
  • Relative Humidity: Min 90% non-condensing RH @ +50°C

Voltage Rating: 100VDC Max @ 125°C

Current Rating: 5 Amps Max
