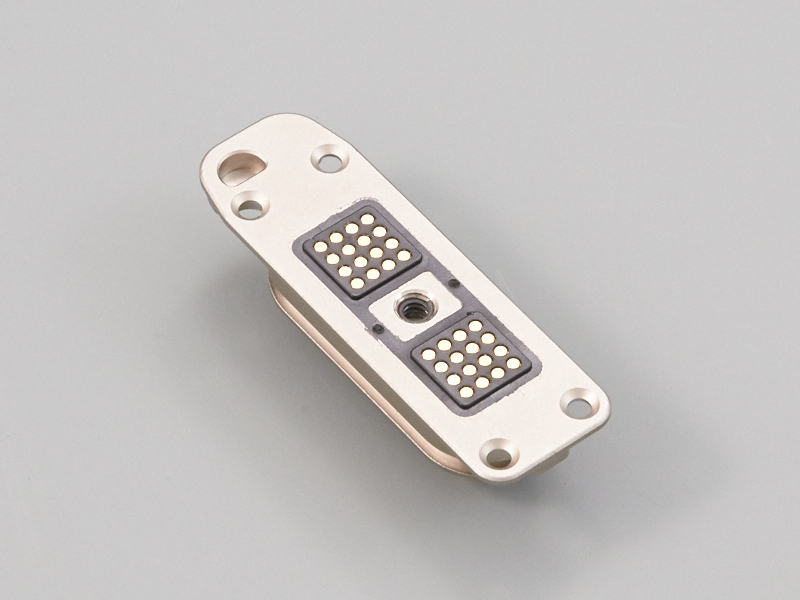

32 Pin Rapidmate w/ Key for AN/PRC-152 & AN/PRC-158

• Contact pattern used on AN/PRC-152 and AN/PRC-158 radio, J3 & J6
• Center  hole #6-32 thread size
• Pin 8 is Tied to the shell (chassis ground)
• All pins filtered exept: 1,2,3,4,5,6,25,26,28
• Capacitor value 2000pF
• Cross Ref: Harris # 12167-2525-01

Environmental Specifications:

• Operating Temperature Range: -55°C to +125°C
• Immersion per MIL-STD-810F to a depth of 2 Meters
• Sand and Dust: Part shall meet the performance requirements of MIL-STD-810E, Method 510.3 procedures I  & II
• Fungus: per MIL_STD-810E, method 508.4 for 28 days
• Salt Fog: per MIL-STD-810E, method 509.1, prodcure I
• Relative Humidity: Min 90% non-condensing RH @ +50°C

Voltage Rating: 100VDC Max @ 125°C

Current Rating: 5 Amps Max
