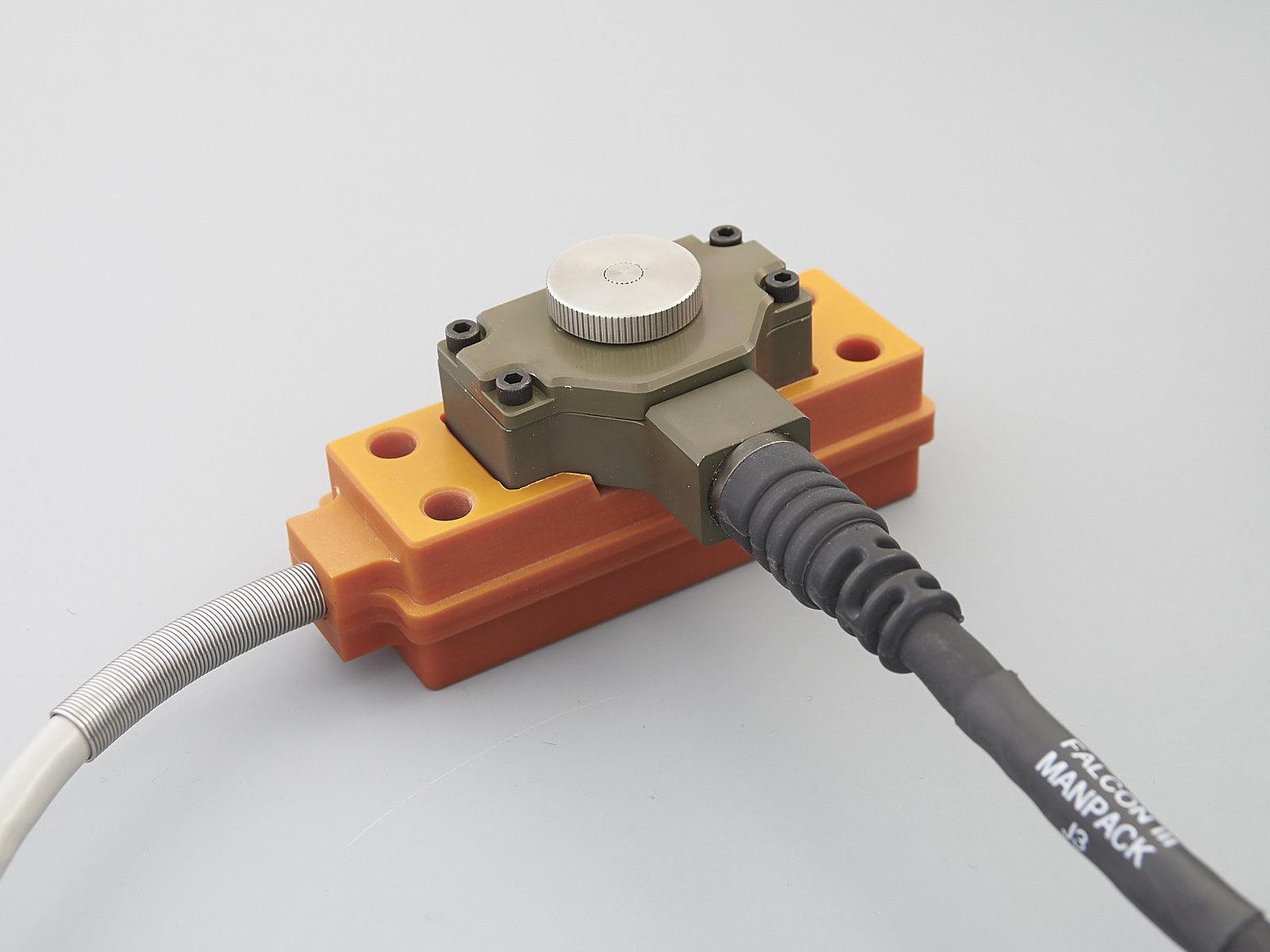

32 Pin Test Fixture for Precision Harris Cable Testing
The 32 Pin Test Fixture is a professional-grade diagnostic tool engineered specifically for Harris OEM cable assemblies, delivering unmatched compatibility with military radio systems like the AN/PRC-117G, AN/PRC-152, and RF-7850M-HH. This fixture is equipped with a male DB37 connector and ensures 100% pin population, including chassis ground for signal integrity testing. It's designed for use in mission-critical environments where accurate, repeatable results are non-negotiable. Trusted by tactical communication experts and RF technicians, this fixture brings rugged performance into the test lab or field bench with zero compromises.
Gold Plated Harris Cable Test Fixture for AN/PRC-117G
- Engineered Compatibility: Built for seamless integration with Harris 32 Position OEM Cables and Connectors.
- Military-Test Ready: Supports signal continuity and function verification for AN/PRC-117G, AN/PRC-152, and RF-7850M-HH.
- Premium Contact Quality: Gold plated contacts reduce oxidation, ensure low resistance, and increase test precision.
- Rugged Mounting Design: Features fixture mounting holes and a hardened steel thumb wheel for secure, stable testing.
- Full Pin Coverage: All 32 pins populated plus chassis ground for comprehensive signal path testing.
RF Cable Testing Tool for Harris Connectors
This Harris OEM Cable Tester delivers rock-solid dependability for military-grade RF cable verification. The gold-plated DB37 interface offers robust conductivity and is fitted in a test fixture that's built to withstand daily lab use and harsh environments. Whether on the bench or in the field, this tool helps technicians verify the integrity and function of Harris cables used in critical communication systems. With hardened steel threads and fixture holes, the unit is not only easy to use—it’s engineered for long life and high-volume applications, making it ideal for defense contractors, military units, and RF engineers.
DB37 Test Fixture for AN/PRC-117G and RF-7850M-HH Cable Test Connector
- Part Number: CONN-32PIN-M-C2
- Connector Type: Male DB37
- Pin Count: 32 Pins + Chassis Ground
- Contact Material: Gold Plated
- Thread Type: Hardened Steel Thumb Wheel Thread Socket
- Mounting Features: Precision Fixture Mounting Holes
- Compatible Systems: AN/PRC-117G, AN/PRC-152, RF-7850M-HH
- Cable Compatibility: All Harris 32 Position OEM Cables and Connectors
DB37 Connector Fixture for Military Radio Cable Testing
Among technicians working on secure communication systems, the Harris 32 Pin Connector test fixture has earned a reputation for reliability and rugged performance. Its universal fit with Harris OEM components and its high-quality materials make it a go-to solution for both bench testing and field diagnostics. The inclusion of all pin paths and grounded chassis ensures every circuit is accounted for, meeting the demanding standards of today’s tactical and RF communication industries.
