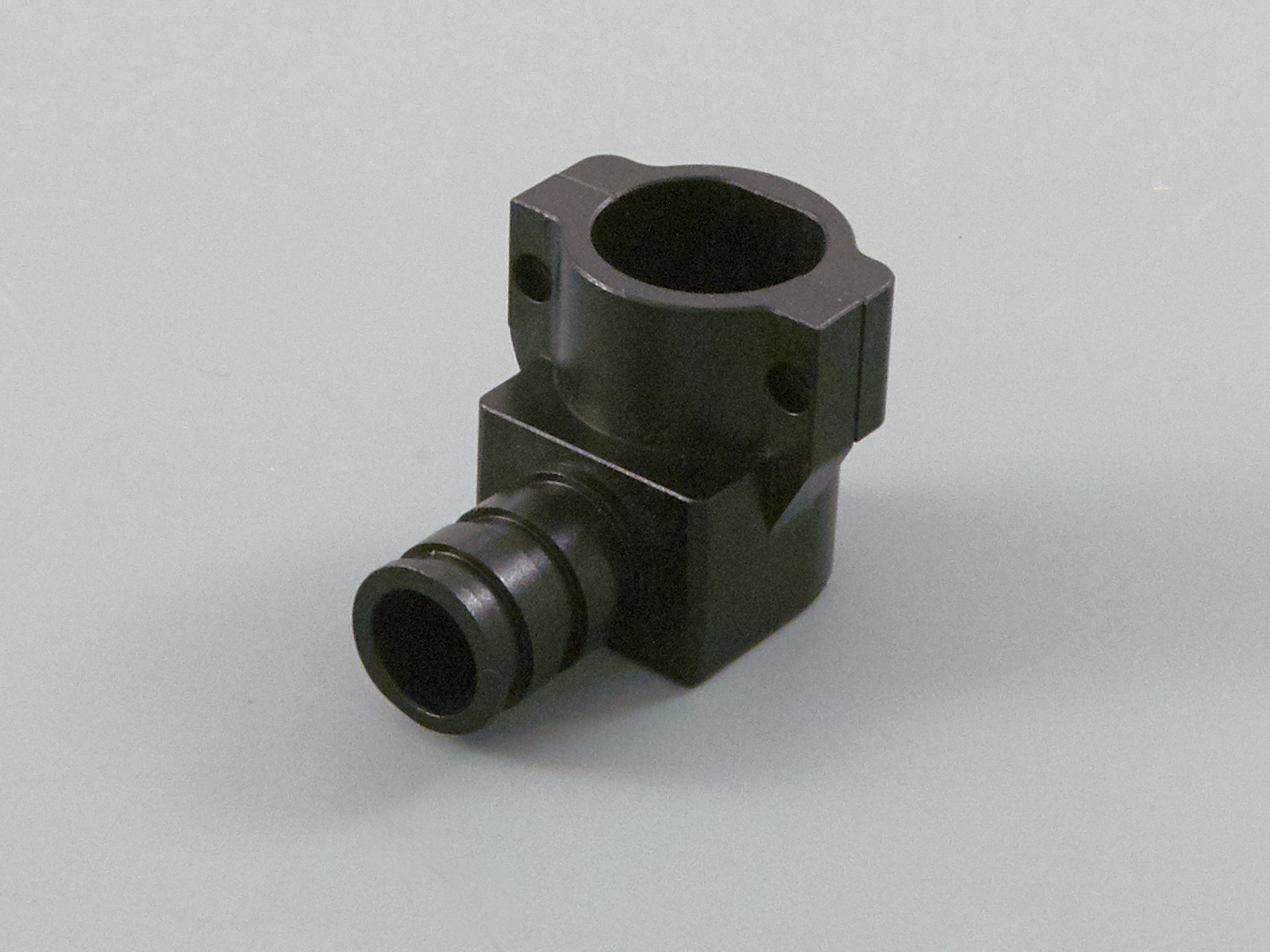

90° Backshell for 19 Pin ADF

Part Number: SN-448-7873-007R
$85.50
VOLUME-BASED PRICING
Quantity Price
50+
$82.08
100+
$80.37
250+
$78.66
500+
$76.95
1000+
$75.24
2000+
$73.53
In Production
  • 488 Unit(s) Expected 06/19/2024
6 - 8 Weeks
+ -
+ -

Discover the Unique Features of the 90° Backshell for ADF Connectors

Imagine the ease and flexibility of configuring your ADF 19 pin connectors in any desired orientation without compromising on signal integrity. The 90° Backshell for ADF Connectors stands out in its class for its unique ability to be clocked to any position, ensuring optimal cable management and system integration. This feature, coupled with the precise requirement of placing a flat on the connector to match the clocking, highlights the product's tailored approach to meet specific installation needs. It's not just a component; it's a solution designed to enhance the functionality and reliability of your connections.

EMI Protection and Durable Construction: A Perfect Combination

The EMI Right Angle Backshell doesn't just bring an angular advantage; it introduces a fortress against electromagnetic interference (EMI). Crafted from stainless steel, it offers unmatched durability and EMI shielding, ensuring your connections are not only physically secure but also protected from unwanted signal disturbances. The black color finish adds a sleek, professional look to the assembly, while its compatibility with specific connectors, including the #078379-6100, underscores its specialized design. This backshell is a testament to blending form and function, prioritizing both aesthetic appeal and technical performance.

Maximized Compatibility and Ease of Installation

The 90° Backshell for ADF Connectors is more than a protective housing; it's a versatile tool designed for seamless integration with a range of setups. The inclusion of two 2-56 1/4" socket head screws ensures a secure fit, while the ability to accommodate a max wire exit diameter of .360" demonstrates its adaptability to various cable sizes. This adaptability extends to its over-mold tooling option for injection molding, offering customization opportunities for specific application requirements. The backshell's thoughtful design and included components ensure a straightforward, hassle-free installation process, making it a preferred choice for professionals seeking reliability and ease of use.

Product Features

  • Flexible Configuration: Can be clocked to any position for versatile installation.
  • EMI Shielding: Stainless steel construction offers excellent EMI protection.
  • Durable Material: Made with high-quality stainless steel for longevity.
  • Comprehensive Compatibility: Designed to be used with connector #078379-6100.
  • Secure Installation: Includes two 2-56 1/4" Socket Head Screws for a reliable connection.

Product Specifications

  • Material: Premium stainless steel for durability and EMI protection.
  • Color: Sleek black finish for a professional appearance.
  • Wire Exit: Accommodates a maximum diameter of .360" for versatile cable management.
  • Compatibility: Specifically designed for use with ADF 19 Pin connectors and connector #078379-6100.
  • Installation Accessories: Comes with (2) 2-56 1/4" Socket Head Screws for secure mounting.

The 90° Backshell for ADF Connectors represents a fusion of innovative design and practical functionality, offering an optimal solution for those in search of reliable and efficient cable management and EMI protection. Discover how this essential component can elevate your connectivity solutions today.
