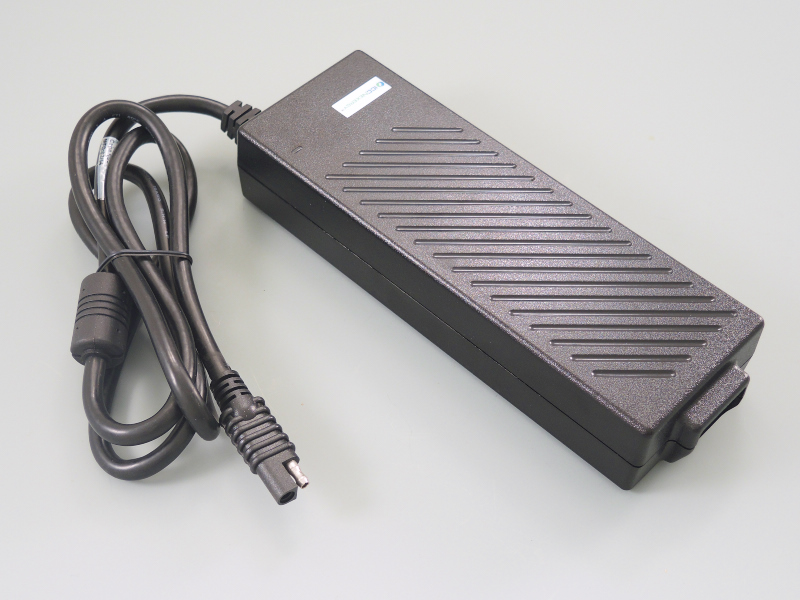

AC/DC 12V 12.5A Power Brick w/SAE Connector

Part Number: SN-12V-SAE
$249.00
VOLUME-BASED PRICING
Quantity Price
50+
$236.55
100+
$224.10
250+
$211.65
500+
$199.20
1000+
$186.75
2000+
$174.30
35 Can Ship Immediately
6 - 8 Weeks
+ -
+ -

This 12V power supply is used with the SN-926

  • Input Voltage: 85 - 264VAC; 100 - 240VAC Nominal
  • Output Voltage: 12V @ 12.5 Amps
  • Ripple & Noise: < 120 uV
  • 12V on pin 4,5 Ground Pin 1,2
  • Size: 5" X 3" X 1.22"
  • Weight: 1.75 lbs.
  • Cable Length: 6 Ft.
  • 5 Year Warranty
  • Sand and Dust Proof
  • Operating Temperature: -40C to +60C
  • Humidity 95%
  • Operating Temp: 0-60C (Full load to 40C derate linearly to 50% load at 60C)
  • Built in Thermal Shutdown Protection



This 12V power supply is used with the SN-926

  • Input Voltage: 85 - 264VAC; 100 - 240VAC Nominal
  • Output Voltage: 12V @ 12.5 Amps
  • Ripple & Noise: < 120 uV
  • 12V on pin 4,5 Ground Pin 1,2
  • Size: 5" X 3" X 1.22"
  • Weight: 1.75 lbs.
  • Cable Length: 6 Ft.
  • 5 Year Warranty
  • Sand and Dust Proof
  • Operating Temperature: -40C to +60C
  • Humidity 95%
  • Operating Temp: 0-60C (Full load to 40C derate linearly to 50% load at 60C)
  • Built in Thermal Shutdown Protection
