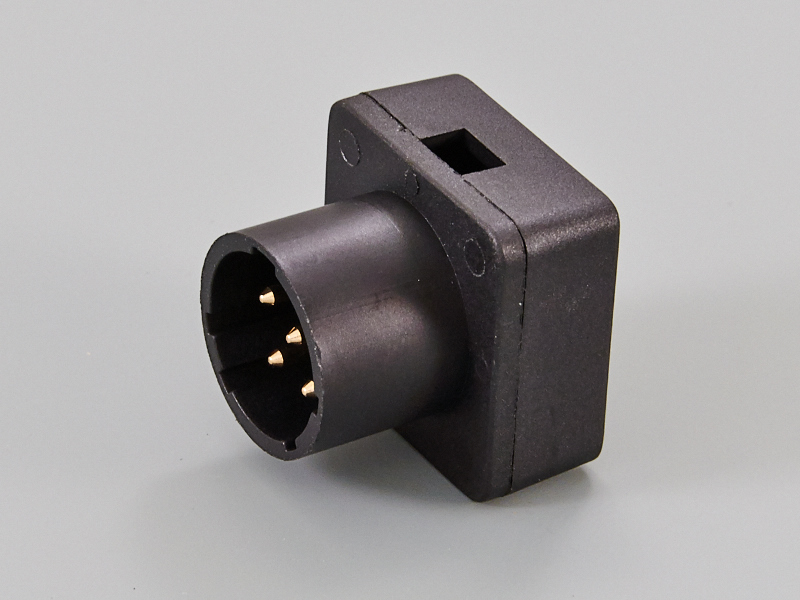

BA-5590 Plug Built for Military-Grade Power Connections
The BA-5590 Plug (Part Number: CONN-BA5590-M-SC) is engineered for serious field reliability and power transfer performance. Designed for use with military-standard batteries like the BA-5590, BB-2590, and BB-490, this male connector features a rugged, notched backshell for strain relief and precision-milled solder cups for secure wire attachment. Whether you're building or repairing tactical radio systems, communication hubs, or portable power stations, this plug ensures compatibility and dependability in the most extreme environments. With cross references including BAI-106G and BAI-10G, it’s a direct swap for existing setups under NSN: 5935014939030—making integration seamless.
BA-5590 plug with solder cups: Precision Connectivity, Field Ready
- Strain Relief Notch: Custom-shaped (.255" x .175") notch design ensures stress-free cable routing during movement and deployment.
- 6 Gold Plated Pins: Rated for 10 Amps, delivering superior conductivity and corrosion resistance in any condition.
- Solder Cup Design: Each solder cup has a .0425" diameter, ideal for solid or stranded AWG 18 gauge wire, making custom wiring simple and secure.
- Numbered Pin Layout: Quick visual reference for installation accuracy and error-free field repairs.
- Pottable Backshell: Seals and protects internal wiring with options for enhanced waterproofing and strain relief.
Male Connector with Pottable Backshell and Gold Plated Pins
This high-performance male connector goes above and beyond typical solder cup connectors by offering rugged build quality tailored for tactical and industrial applications. The gold plated pins ensure consistent connectivity, while the pottable backshell safeguards internal solder points from environmental exposure. Whether you’re building custom cable assemblies or retrofitting existing gear, this connector provides maximum flexibility. Fully compatible with military-grade battery systems like the BA-5590, BB-7590, and more, it's perfect for integration into power distribution systems, defense electronics, and mobile power solutions.
6-pin male connector for military batteries: Full Specs You Can Trust
- Part Number: CONN-BA5590-M-SC
- Cross Reference: BAI-106G, BAI-10G
- NSN: 5935-01-493-9030
- Pin Count: 6 gold plated pins, rated at 10 Amps
- Solder Cup Diameter: .0425"
- Wire Compatibility: Up to AWG 18 gauge
- Strain Relief Opening: .255" x .175"
- Backshell Type: Pottable backshell; also available with 8mm threaded backshell (Part #: CONN-BA5590-MT)
- Compatibility: BA-5590, BA-5390, BB-390, BB-490, BB-2590, BB-590, BB-7590
Solder Cup Connector for Military Battery Integration
Known across defense, aerospace, and tactical electronics sectors, this solder cup connector is a go-to solution for professionals needing rock-solid battery connections in critical systems. Its ability to connect seamlessly with a wide range of military battery types, combined with its durable design, has made it a staple component in both OEM production and field maintenance kits. Recognized as an industry-standard for military battery connectors, the BA-5590 male plug is trusted for its superior electrical integrity and ease of use in mission-critical operations.
