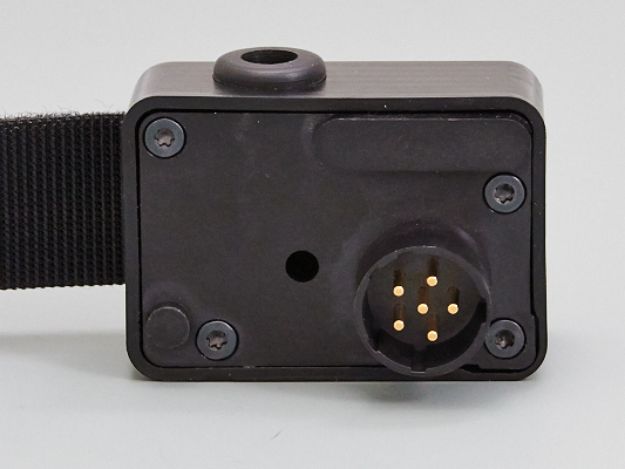

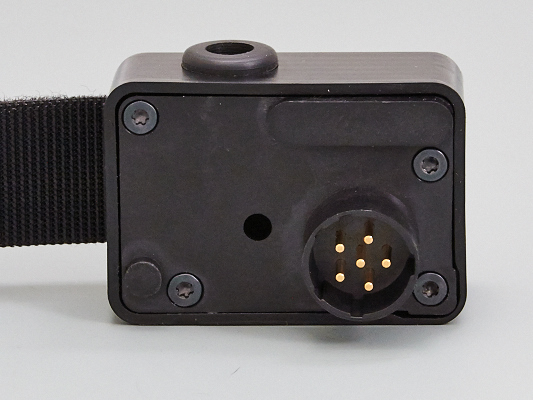

BA5590 Battery Connector Built for Tactical Power
The BA5590 battery connector kit with Velcro strap is a rugged and field-ready power solution built specifically for tactical and military-grade battery compatibility. Engineered to integrate seamlessly with BA-5590 and similar military standard batteries, this kit offers a no-nonsense solution for secure connections under extreme conditions. Whether you’re outfitting a military communications unit or powering field-deployable electronics, this connector keeps your power lines stable and secure. Designed with portability in mind, its hook-and-loop Velcro strap ensures quick mounting in dynamic environments. This kit parodies the infamously overcomplicated power setups with a straight-shooting design that delivers mission-critical performance every time.
BA5590 Battery Connector with Velcro Strap
- Field-Ready Attachment: Comes equipped with a durable Velcro strap for fast, reliable mounting in mobile or tactical settings.
- Integrated PCB Terminal: Internal printed circuit board simplifies wire attachment, reducing assembly time and enhancing reliability.
- Wide Compatibility: Fully supports BA-5590, BA-5390, BB-390, BB-490, BB-2590, BB-590, and BB-7590 military battery models.
- Rugged Construction: Pottable backshell with thermal-rated PBT housing provides durability under harsh environmental stress.
- Optimized for High Current: Features 6 gold-plated pins rated at 20 amps, accepting up to 14 AWG wire for robust current handling.
Military Battery Connector with Exceptional Build Quality
This military battery connector is crafted for elite field applications, offering unmatched durability and performance. The ruggedized shell, made from 30% glass-filled Polybutylene Terephthalate (PBT), is Berry compliant and thermally rated to UL94 V0 and 5VA flame standards. Whether you’re powering ground communication systems, field surveillance tech, or mission-critical equipment, this BA5590 battery connector with Velcro strap is ready for the job. It also simplifies field installation with a pre-wired option and supports AWG 14 gauge connections, making it ideal for operators who need quick deployment without sacrificing quality.
6-Pin Connector for BB-2590 and Other Batteries
- Part Number: SN0019-5NN-1-1
- Pin Configuration: 6 gold-plated pins rated at 20 Amps
- Wire Compatibility: Accepts AWG 14 Gauge Wire
- Wire Opening: 0.31 inches
- Backshell: Pottable for additional sealing and durability
- Optional Cabling: Available with cable attached
- Material: Polybutylene Terephthalate (PBT) with 30% glass fill
- Thermal Ratings: UL94 V0 @ 0.71mm, 5VA @ 2.0mm
- Compliance: Berry compliant for military procurement
BA-5590 Connector Kit Setting the Standard
The BA-5590 connector kit is trusted across defense, aerospace, and rugged industrial sectors. Its 6-pin gold-plated layout and high-amperage capacity make it the go-to choice for reliable field connections. Designed for those who demand secure power under pressure, this BB-2590 battery adapter is fast becoming the industry benchmark for battery connectivity in portable tactical systems. Built tough and easy to deploy, it’s not just a
