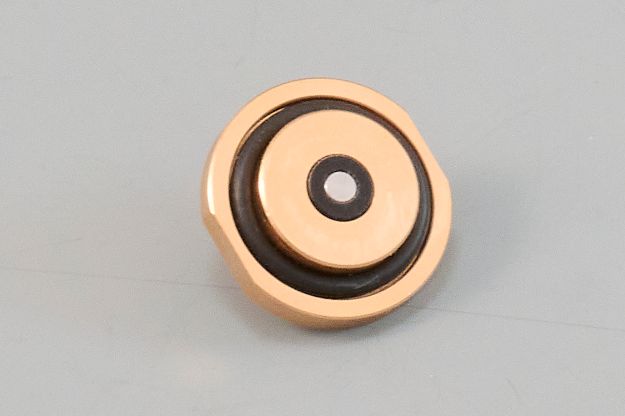

Picture of Battery Emulator (+) Power & Data Contact Array

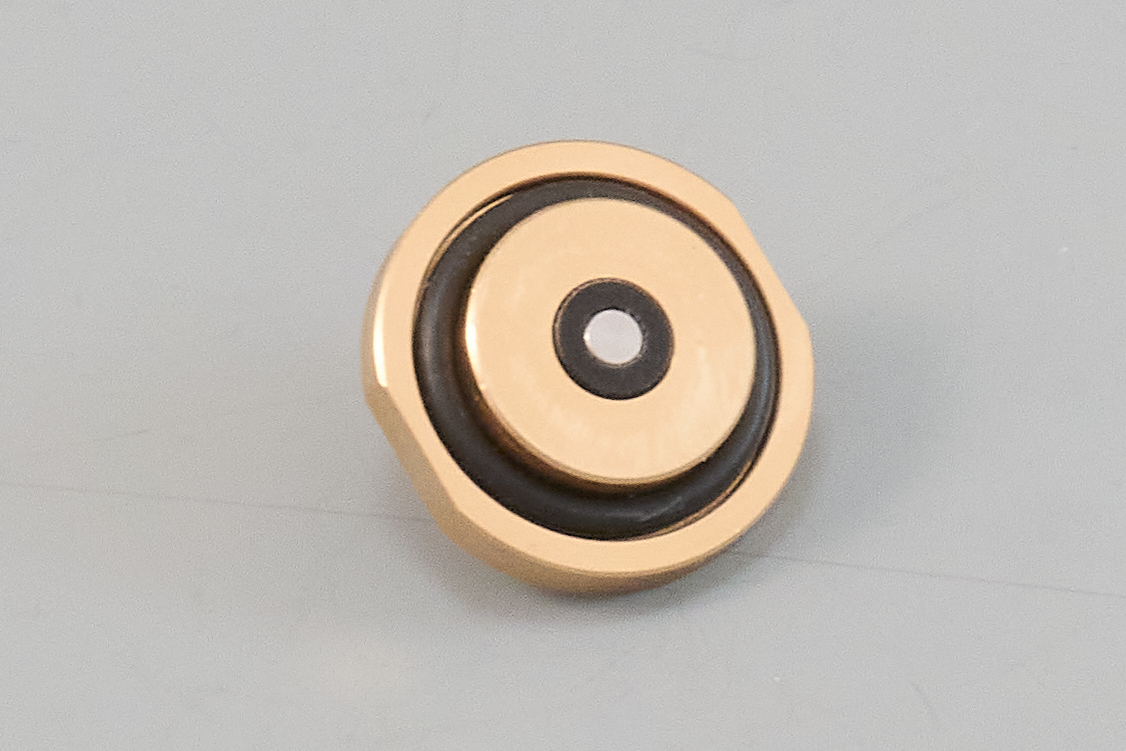

Picture of Battery Emulator (+) Power & Data Contact Array

Picture of Battery Emulator (+) Power & Data Contact Array

Picture of Battery Emulator (+) Power & Data Contact Array

Battery Emulator (+) Power & Data Contact Array

Part Number: SN-PRC163-CIRC-ASSY

$34.50

Availability:

2027 Can Ship Immediately

Lead Time for additional units:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Data & Power (+) Contact array used on battery and battery eliminators
Rubber "O" Ring installed as shown
Center Data Pin is Brass
Circular Power (+) area is gold plated
To be mounted from inside the case
Steel Tab part # 1116-01-109 are the Ground Contacts
