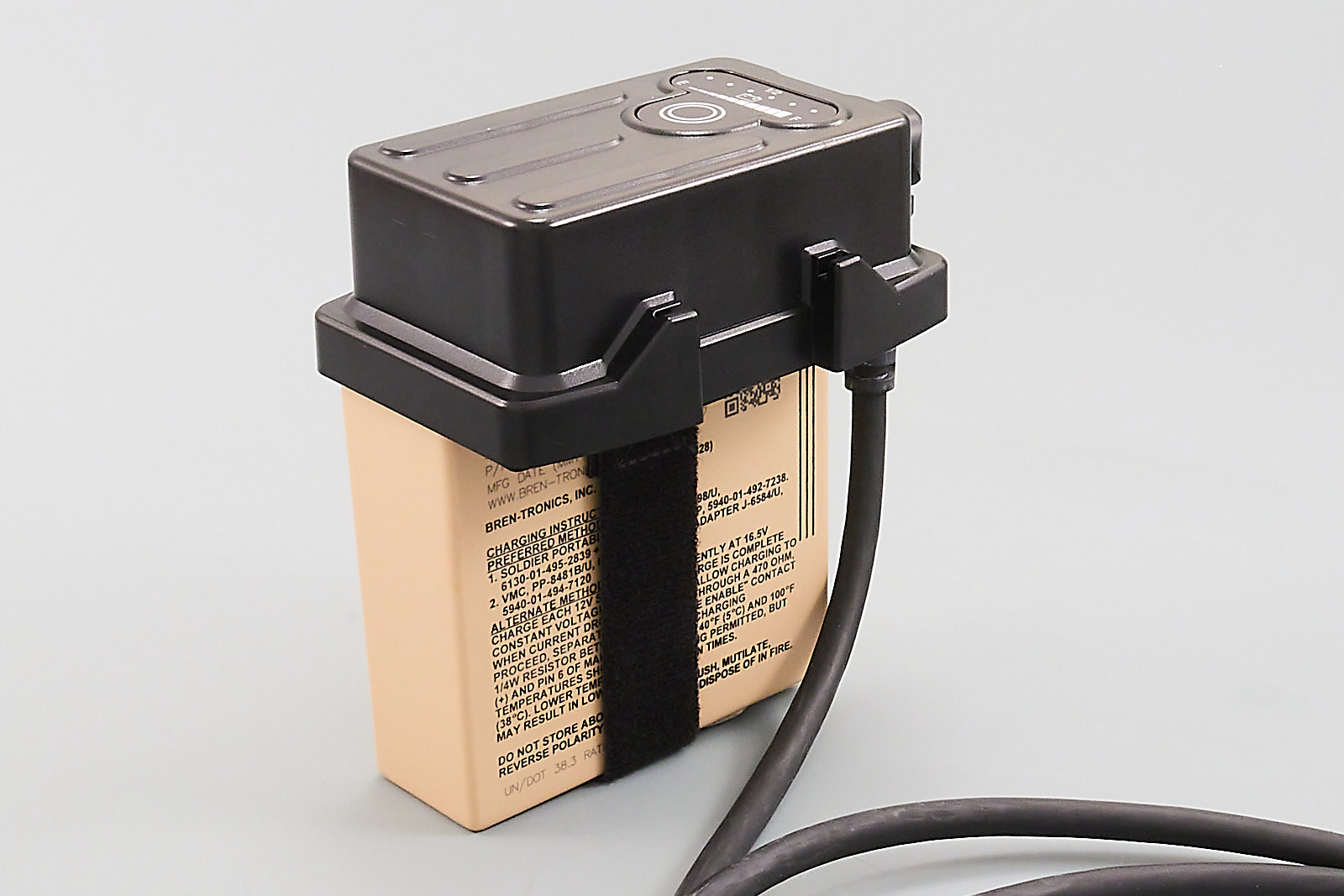

BB-2557 Battery Charger, 180 Degree exit, 24V, SMBUS

Part Number: SN-928-C24-180D
$695.00
VOLUME-BASED PRICING
Quantity Price
1+
$695.00
50+
$625.50
4 Can Ship Immediately
6 - 8 Weeks
+ -
+ -
  • Input Charging Voltage: 10.5-19VDC
  • Output Voltage: 12VDC unregulated)
  • Current: 15 Amps Continuous
  • Input power charges battery and simultaneously power load
  • Automatically switches over to battery power once external power is removed
  • Switch time: 3 milliseconds from input power to battery power
  • State of Charge indicator (while charging)
  • Battery Fuel indicator (when on battery power)
  • On/Off switch to power down circuit during storage
  • All SMBus pins populated
  • Cable length: 6 Feet
  • Wire: AWG 16/AWG 22, OD: .305"
  • Weight: 12 oz.
  • Watertight
  • Environmental strap impervious to UV light
  • Operating Temperature: -40°C to +60°C
  • Rugged Design to absorb impact
  • Great for use as battery backup
  • For Rechargeable BB-2557 Li-Ion Batteries
  • STEP CAD Model available upon request
  • Input Charging Voltage: 10.5-19VDC
  • Output Voltage: 12VDC unregulated)
  • Current: 15 Amps Continuous
  • Input power charges battery and simultaneously power load
  • Automatically switches over to battery power once external power is removed
  • Switch time: 3 milliseconds from input power to battery power
  • State of Charge indicator (while charging)
  • Battery Fuel indicator (when on battery power)
  • On/Off switch to power down circuit during storage
  • All SMBus pins populated
  • Cable length: 6 Feet
  • Wire: AWG 16/AWG 22, OD: .305"
  • Weight: 12 oz.
  • Watertight
  • Environmental strap impervious to UV light
  • Operating Temperature: -40°C to +60°C
  • Rugged Design to absorb impact
  • Great for use as battery backup
  • For Rechargeable BB-2557 Li-Ion Batteries
  • STEP CAD Model available upon request
