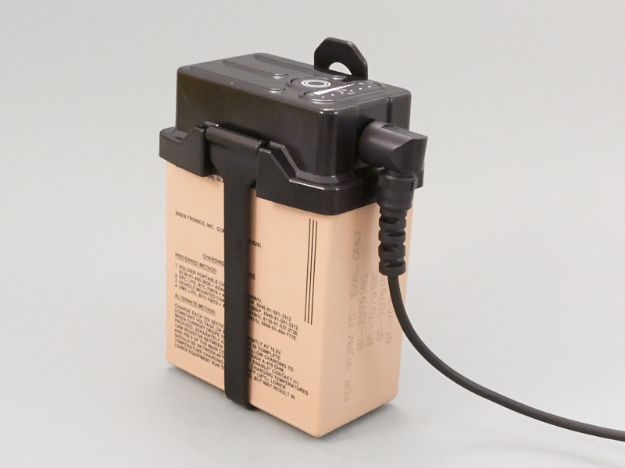

BB-2590 24V/24N Pass-Thru charger No SMBUS

Part Number: SN-926-B24-180D
Price: $615.00
VOLUME-BASED PRICING
Quantity Price
1+
$615.00
50+
$608.85
100+
$590.40
250+
$578.10
500+
$565.80
1000+
$553.50
2000+
$541.20
In Production
6 - 8 Weeks
+ -
+ -
  • Input Charging Voltage: 20-36VDC
  • Output Voltage: 24VDC (unregulated)
  • Cable exits down 180°
  • Current: 10 Amps Continuos
  • Charges Battery in less than 6 Hours
  • Input connector: SAE 2 Pin
  • Input power charges battery and simultaneously power load
  • Automatically switches over to battery power once external power is removed
  • Switch time: 3 milliseconds from input power to battery power
  • State of Charge indicator (while charging)
  • Battery Fuel indicator (when on battery power)
  • On/Off switch to power down circuit during storage
  • Cable length: 6 Feet
  • Wire: AWG 16, OD: .020"
  • Weight: 12 oz.
  • Watertight
  • Environmental strap impervious to UV light
  • Operating Temperature: -40°C to +60°C
  • Rugged Design to absorb impact
  • Great for use as battery backup
  • For Rechargeable BB-2590 Li-Ion Batteries
  • STEP CAD Model available upon request
