BB-2590 SMBUS Battery Connector Kit, 5 Data Pins

Part Number: SN0019-4N12345-1-1

Price:

Price: $87.50

VOLUME-BASED PRICING

Availability:

153 Can Ship Immediately

Lead Time for additional units:

6 - 8 Weeks

Qty:

+ -

Qty:

+ -

Environmental & Export Classifications

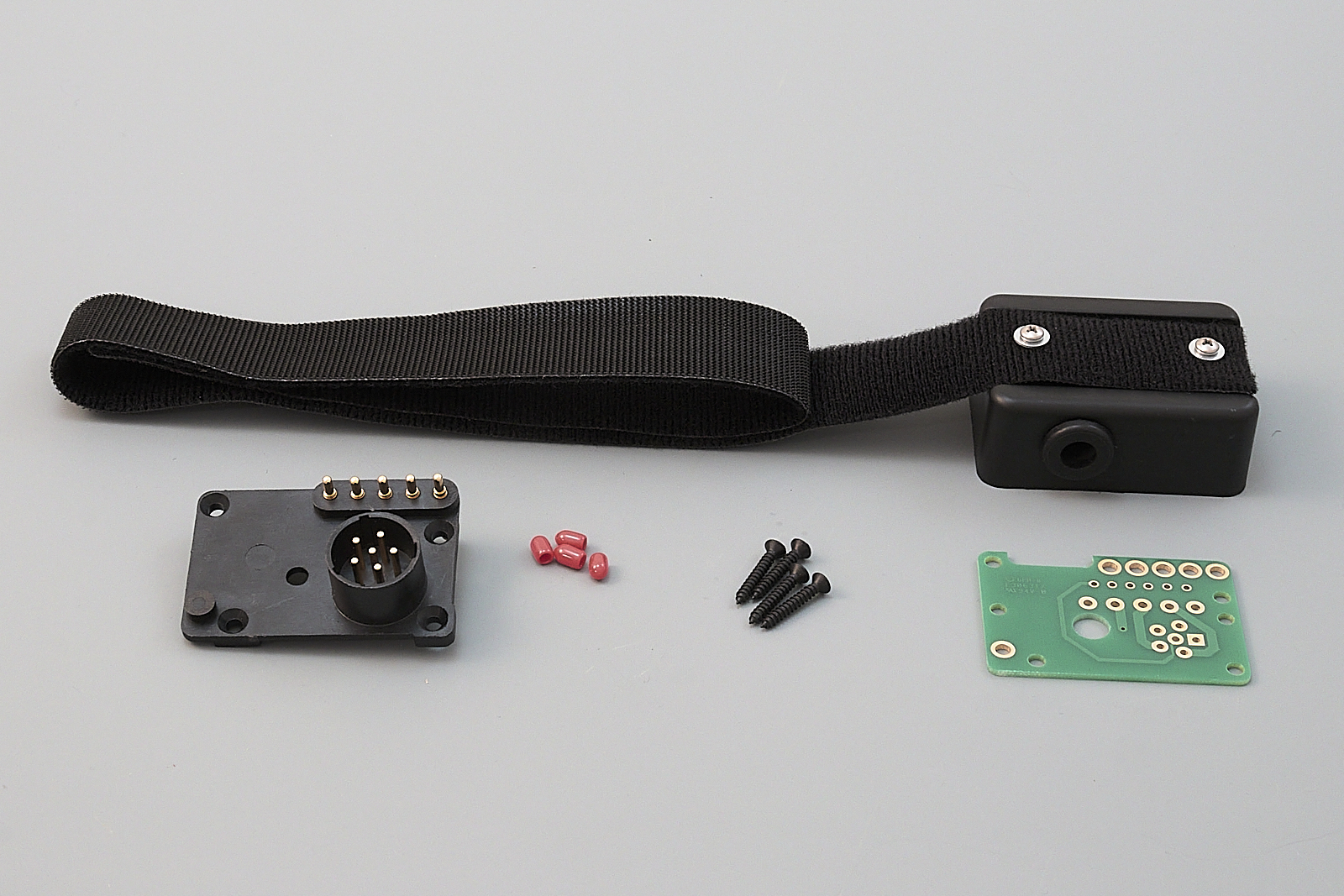

Includes BB2590 SMBUS Connector, PCB, Cover, Velcro Strap, Screws, Nylon Pin Caps, Grommet, 5 Data Pogo Pins
Fits only Rechargeable Batteries (will not fit BA-5590)
(5) SMBUS Pogo Pins Included with kit
Velcro Strap To Secure Connector to Battery
Wire Exit hole .30" Diameter
Accepts up to AWG 14 for Power
Compatible with all Rechargable Batteries with SMBUS Technology
Connector is available without Cover & Velcro Strap
Thermal: UL94 V0 @ 0.71mm and 5VA @ 2.0mm flame rating
Material: Polybutylene Terephthalate (PBT) with a 30% glass fill
Amp Rating: 20 Amps per pin
Berry compliant

Includes BB2590 SMBUS Connector, PCB, Cover, Velcro Strap, Screws, Nylon Pin Caps, Grommet, 5 Data Pogo Pins
Fits only Rechargeable Batteries (will not fit BA-5590)
(5) SMBUS Pogo Pins Included with kit
Velcro Strap To Secure Connector to Battery
Wire Exit hole .30" Diameter
Accepts up to AWG 14 for Power
Compatible with all Rechargable Batteries with SMBUS Technology
Connector is available without Cover & Velcro Strap
Thermal: UL94 V0 @ 0.71mm and 5VA @ 2.0mm flame rating
Material: Polybutylene Terephthalate (PBT) with a 30% glass fill
Amp Rating: 20 Amps per pin
Berry compliant
