BB-2590 SMBUS Cable Wired for 24V with SMBUS Pins - 72 Inch Cable
The BB-2590 SMBUS Cable wired for 24V with SMBUS pins, part number CONN-BB2590SMBUS-C2, is a highly versatile and durable cable solution designed specifically for use with rechargeable Li-Ion batteries featuring SMBus technology. This 72-inch cable is engineered to support seamless communication and power transmission, making it ideal for applications requiring both data transfer and power delivery. Uniquely designed with Velcro straps and strain relief to ensure secure connections, this cable offers enhanced protection for its wiring and is Berry compliant, meeting stringent manufacturing standards.
Key Features of the BB-2590 SMBUS Cable Wired for 24V
- SMBus & 24V Power Integration: Wired to support both 24V power and SMBus communication with Pins 2 and 4 tied together.
- Secure Fit for Rechargeable Batteries: Specifically designed to fit only Li-Ion rechargeable batteries, this cable is not compatible with BA-5590 models.

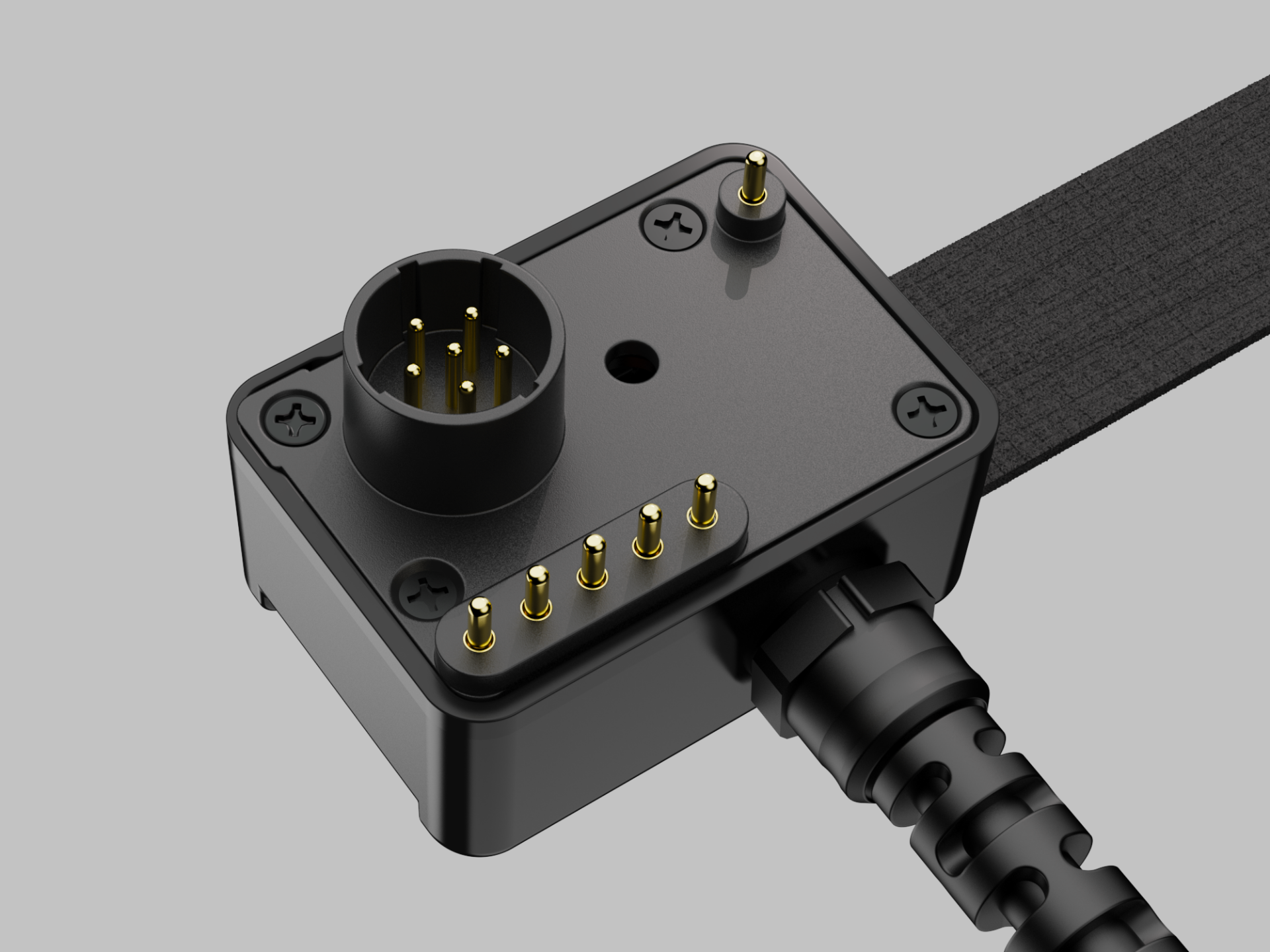

- Cable Protection and Strain Relief: The cable exits across the battery top for enhanced durability, with strain relief screws integrated into the cap.

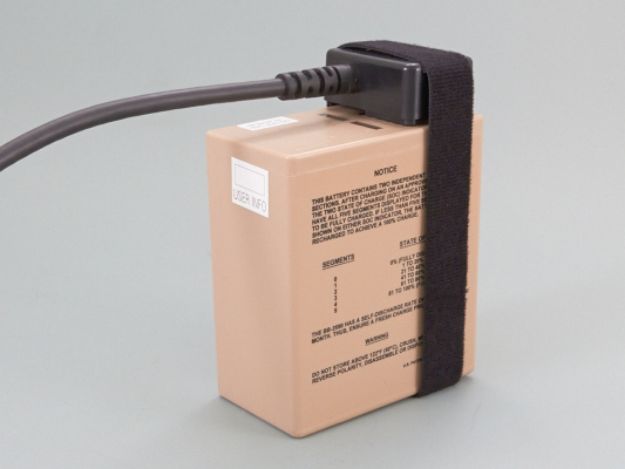

- Velcro Strap Included: Ensures the connector is securely fastened to the battery for reliable use in rugged conditions.
- Fully Wired SMBus Pins: All SMBus pins are wired, including the charge enable function for complete battery communication.
- Blunt Cut Cable: The cable comes unterminated, offering flexibility for custom termination and specific connector requirements.
High-Quality BB-2590 SMBUS Cable for Li-Ion Rechargeable Batteries
This BB-2590 SMBUS cable delivers impeccable quality with a robust design tailored for demanding applications. The cable is constructed using AWG 22 gauge wires for both power and data, ensuring reliable performance and signal integrity. It’s ideal for military, industrial, and other critical use cases that require safe and efficient power transfer combined with data monitoring. The 72-inch length provides ample reach, and its blunt cut configuration allows for customization to suit various operational needs. Additionally, the cable is Berry compliant, signifying adherence to U.S. manufacturing regulations and standards.
Technical Specifications for BB-2590 SMBUS Cable
- Part Number: CONN-BB2590SMBUS-C2
- Cable Length: 72 inches
- Wiring: AWG 22 for both power and data
- Power Configuration: Pins 2, 4 tied together for 24V power
- Battery Compatibility: Li-Ion Rechargeable Batteries with SMBus Technology (not compatible with BA-5590)
- Termination: Unterminated (blunt cut)
- Cable Exit: Across battery top for added protection
- Strain Relief: Integrated strain relief screws into cap
- Velcro Strap: Provided for securing the connector to the battery
- Compliance: Berry compliant
Industry-Standard BB-2590 SMBUS Cable with Customization Options
Recognized as an industry-standard cable for BB-2590 SMBUS applications, this product is a popular choice for professionals requiring reliable battery connections in military, industrial, and critical operations. Its versatility is enhanced by the ability to be customized to specific lengths and terminated with a connector of your choice. With all SMBus pins wired and the added convenience of a Velcro strap for secure fastening, this cable is a leading solution for demanding environments where both power delivery and data communication are essential.
