DAGR J2 Cable for Secure Military GPS Connectivity
Engineered for tactical precision and mission-critical performance, the DAGR J2 cable is designed to seamlessly interface with military-grade GPS receivers. Specifically crafted to connect to the DAGR J2 port, this high-quality assembly features all pins populated and includes a 50 Ohm coax on the PPS signal—ideal for timing-sensitive operations. The right angle, low-profile HD15 female connector ensures a snug fit in tight installations, providing versatility in vehicle and equipment setups. Compatible with ED3 configurations, this cable stands out for its adaptability and robust construction, tailored to meet the exacting demands of defense communications.

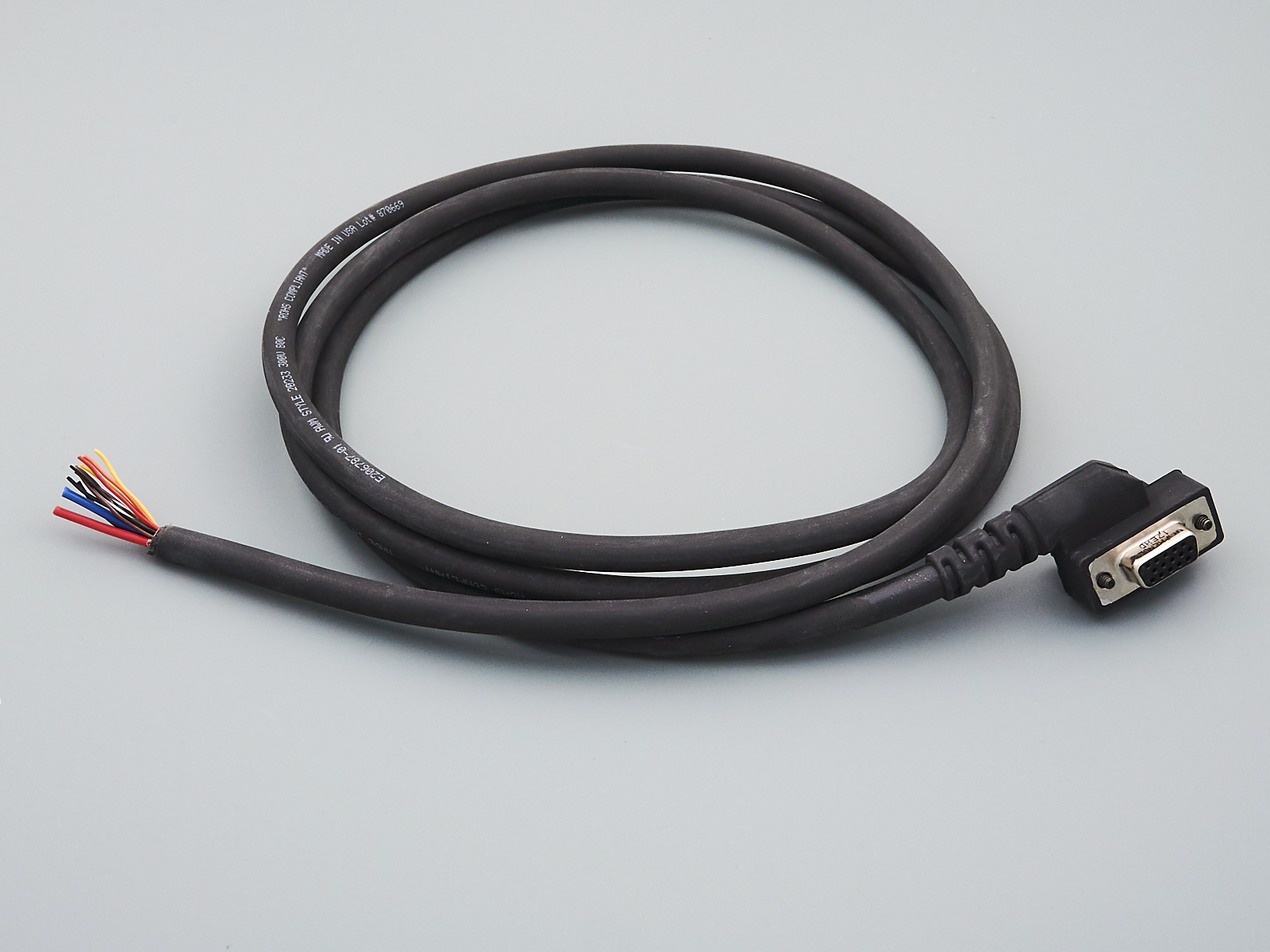

DAGR J2 Cable with All Pins Populated
- All Pins Populated: Ensures full-function connectivity to the DAGR J2 port for complete signal transmission and device compatibility.
- 50 Ohm Coax on PPS Signal: Optimized for precise pulse-per-second signal transfer, critical for synchronized GPS operations.
- Right Angle HD15 Connector: Low-profile female HD15 connector provides space-efficient integration with minimal signal interference.
- Extended Cable Length: With a 12-foot reach, it offers flexibility for mounting GPS units across various military platforms.
- Unterminated End: Allows for custom terminations based on mission or vehicle requirements.
HD15 J2 Connector & Military GPS Cable Features
Manufactured for elite performance, this HD15 J2 connector solution utilizes rugged, field-tested materials suitable for military environments. With high-frequency 50 Ohm coaxial cable support and precise PPS signal handling, it’s ideal for high-speed GPS timing applications. Whether in a mobile command unit, airborne system, or ground vehicle, this military GPS cable ensures stable connections. It's engineered with long-tail features that support custom DAGR cable for ED3 compatibility and flexible installations.
50 Ohm Coax on PPS Signal Cable
- Part Number: SN-C7006B0092-06
- NSN: SN-C7006B00092-06
- Connector: Right angle, low-profile HD15 female J2
- Cable Length: 12 feet
- Coax Specification: 50 Ohm coaxial on PPS signal
- End Termination: Unterminated (custom options available)
- Compatibility: Fully compatible with ED3 equipment
Military GPS Cable & DAGR Cable Assembly Demand
This DAGR cable assembly has become a go-to solution across defense communication teams for its reliability and future-ready compatibility. Known throughout the industry for its superior integration with ED3 compatible cable systems, it is often specified in standard military GPS infrastructure designs. Its precision-engineered specs and customizability have made it a trusted component among leading integrators and system architects alike.
