Dual Channel RF Cable Assembly for Enhanced Connectivity
Upgrade your setup with the Dual Channel RF Cable Assembly, expertly engineered to deliver reliable performance for your critical communication needs. Perfect for systems like the Thales TH5320/TH5325 IMBITR, this assembly features a fully shielded design to ensure minimal interference. The SN-1131-RF-V5 boasts dual channel output—NB for all signals and WB for USB-only applications—plus an optional RF coax connector, making it an adaptable solution for a range of mission-critical environments.

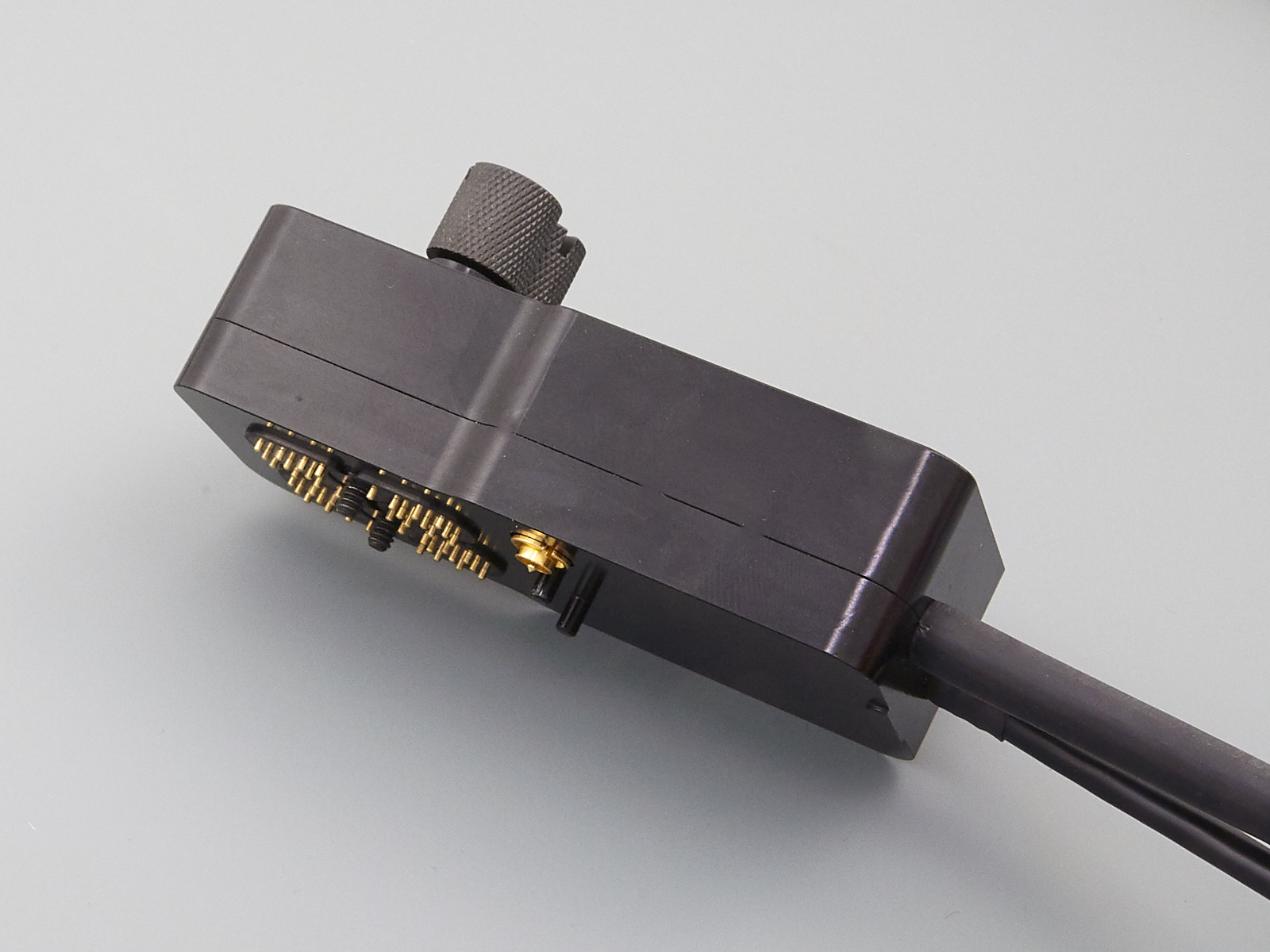

Dual Channel RF Cable Assembly with USB and Ethernet connectors
- NB & WB Outputs: NB handles all signals while WB is tailored for USB-only applications, ensuring versatility and performance.
- RF Coax Connector: Equipped with a 50 Ohm coax connector, designed for secure and stable connections.
- Custom Cable Configurations: Available with USB, Ethernet, M38999, and other connector terminations to meet diverse system requirements.
- Thumbscrew Design: Features dual slotted thumbscrews for easy and secure fastening, even in challenging environments.
- Fully Shielded Construction: Robust shielding minimizes RF interference for maximum signal integrity.
RF Coax Connector and Dual Thumbscrews Cable Assembly
Crafted with precision, the Dual Channel RF Cable Assembly ensures seamless integration into demanding RF environments. The dual thumbscrews provide secure attachment, and the RF Coax Connector guarantees excellent performance across a range of frequencies. Supporting outputs like USB and Ethernet, this assembly excels in mission-critical applications, ensuring signal clarity and reliable performance. The fully shielded cable design works in tandem with the 50 Ohm coax connector to deliver exceptional connectivity in both narrowband and wideband systems.
Custom dual output RF cable with slotted thumbscrews
- Part Number: SN-1131-RF-V5
- Coax Connector: 50 Ohm RF coax, installed
- Cable Outputs: Dual cable output plus RG174 cable output
- Connector Options: USB, Ethernet, M38999, and more
- Shielding: Fully shielded for maximum RF integrity
- Compatibility: Designed to work with Thales TH5320/TH5325 IMBITR radios
- Optional RF Connector: Available without RF connector for custom applications
USB Ethernet output and RG174 Cable Output for Versatile Applications
Highly popular in military-grade communication setups, the Dual Channel RF Cable Assembly has become an industry standard for secure, reliable performance. Its dual output design—NB and WB—paired with RG174 cable output ensures flexibility in high-stakes environments. The assembly's broad compatibility with USB, Ethernet, and other outputs like M38999 connectors further underscores its adaptability, making it a go-to choice for secure and efficient RF and data transmission.
