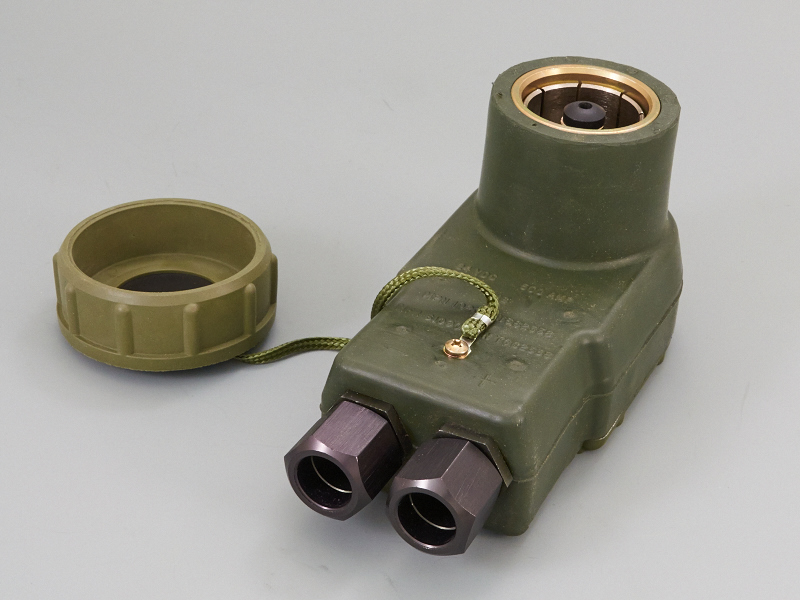

NATO 1000 AMP Plug Dual Wire

Part Number: SN-219
NSN: 5935-01-606-4994
$205.00
VOLUME-BASED PRICING
Quantity Price
1+
$205.00
50+
$198.85
100+
$196.80
250+
$192.70
500+
$188.60
1000+
$184.50
2000+
$143.50
6 Can Ship Immediately
  • 120 Unit(s) Expected 10/19/2024
6 - 8 Weeks
+ -
+ -

Introducing the NATO 1000 AMP Plug Dual Wire

Experience unparalleled reliability and performance with the NATO 1000 AMP Plug Dual Wire, part number SN-219. A testament to advanced engineering and compliance with STANAG 4074, this inter-vehicle connector is a powerhouse, capable of a 500 Amps continuous duty cycle and enduring 1000 Amp overload for six minutes. Manufactured in the United States, it sets the standard for military-grade connectors, ensuring optimal functionality in the most demanding environments. Whether for tactical vehicles or critical field operations, its robust design and superior electrical capabilities make it indispensable.

Features Beyond Expectations

  • Exceptional Electrical Performance: Rated for 500 AMPS continuous duty and withstands 1000 Amp overload, ensuring reliability under stress.
  • Durable and Resilient: A single piece of polychloroprene moulding with neoprene molded rubber insulation, designed to resist corrosion, fungus, and ozone exposure.
  • Premium Contacts: Features copper alloy coaxial contacts with a nickel finish, providing low contact resistance and high durability.

Crafted for Military Precision

The NATO 1000 AMP Plug Dual Wire is not just any connector; it's a meticulously designed component that meets or exceeds MIL-C-62122(B) standards. Its compatibility with both solder and crimp contact types and the inclusion of ring terminals cater to a wide array of military applications. With a temperature rating spanning from -55C to +100C, it's engineered to perform in extreme conditions, offering unmatched reliability for every mission.

Specifications You Can Trust

  • Inter-Vehicle Connector Rating: Rated at 500 Amps (1000 Amp Overload), manufactured in the USA and conforms to STANAG 4074.
  • Electrical Capacity: 500 AMPS continuous duty cycle, 1000 Amp overload capability for up to 6 minutes.
  • Construction Material: Single piece polychloroprene moulding for durability.
  • Contacts Detail: Copper alloy coaxial with a nickel finish for reduced contact resistance.
  • Insulation Type: Neoprene molded rubber, ensuring robust insulation.
  • Contact Resistance: Maximized efficiency with a contact resistance of 0.5 milli ohms.
  • Connection Flexibility: Solder or crimp contact type with straight bolt-on lugs, catering to wire sizes from 0000 (.50" diameter) to AWG 4 (.20" Diameter).
  • Additional Components: Includes ring terminals (.50" Diameter) with a 3/8-24 thread bolt size.
  • Torque Specifications: 200 inch-lbs max torque for ring terminal lugs.
  • Optional Bushing Kit: .32" ID, adaptable to smaller diameter wires and can be drilled out to 0.5".
  • Environmental Resistance: Built to resist corrosion from petroleum products, fungus, and ozone.
  • Compatibility: Mates to SN-216 (NATO Receptacle) for seamless integration.
  • Weight and Cross-Reference: Weighs 4 lbs, cross-referenced as TGC2338 11682338 (rev. G), TACOM approved.
  • Compliance and Standards: Meets or exceeds MIL-C-62122(B), RoHs compliant, and adheres to NATO STANAG 4074.
  • Temperature and Complete Set: Operates within a temperature range of -55C to +100C. For complete cable set, see part # SN-224.

A Connector That Leads the Charge

The NATO 1000 AMP Plug Dual Wire, part number SN-219 and NSN 5935-01-606-4994, is more than a connector; it's a critical asset for military operations, engineered for excellence and reliability. With its robust design, adaptable features, and compliance with military standards, it stands ready to support the most critical operations, powering through any challenge with unmatched efficiency.
