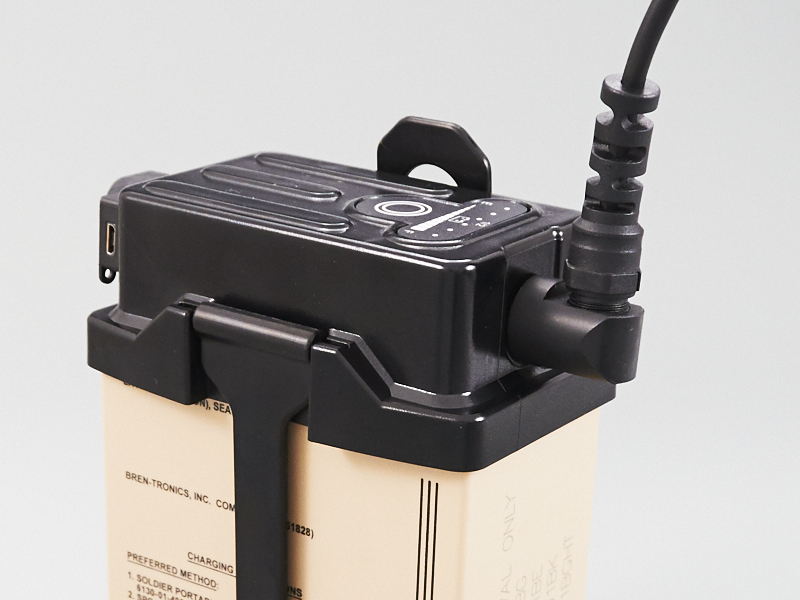

Pass-Thru Charger 24V 360° Exit

Part Number: SN-926-A24-360D
Price: $599.50
VOLUME-BASED PRICING
Quantity Price
1+
$599.50
50+
$593.50
100+
$575.52
250+
$563.53
500+
$551.54
1000+
$539.55
2000+
$527.56
2 Can Ship Immediately
6 - 8 Weeks
+ -
+ -
  • Wire Exits to a 360 degree bend
  • Input Charging Voltage: 20-36VDC (SAE Port)
  • Current: 10 Amps Continuous (10 Amp Daughter Board now integrated)
  • Output Voltage: 24VDC (unregulated)
  • Charges Battery in less than 6 Hours
  • Input power charges battery and simultaneously power load
  • Automatically switches over to battery power once external power is removed and back once power is restored
  • Switch time: 3 milliseconds from input power to battery power
  • State of Charge indicator (while charging)
  • Battery Fuel indicator (when on battery power)
  • Powers up as soon as externl power is applied
  • On/Off switch to power down circuit during storage
  • All SMBus pins populated
  • Cable length: 6 Feet
  • Wire: AWG 16/AWG 22, OD: .305"
  • Weight: 12 oz.
  • Watertight
  • Environmental strap impervious to UV light
  • Operating Temperature: -40°C to +60°C
  • Rugged Design to absorb impact
  • Great for use as battery backup
  • For Rechargeable BB-2590 Li-Ion Batteries
  • STEP CAD Model available upon request
