Pass-Thru Charger 24V Single Input/ Output 270° Exit
Close

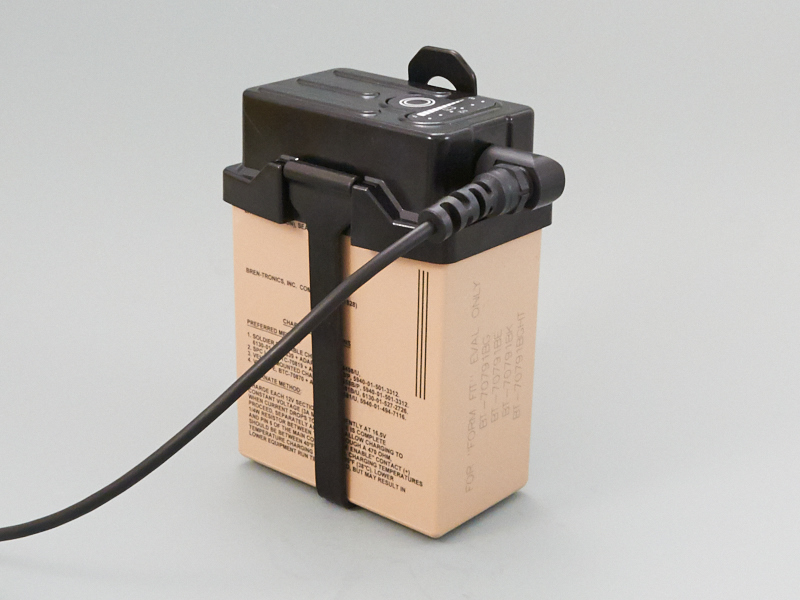

Pass-Thru Charger 24V Single Input/ Output 270° Exit
Part Number:
SN-926-C24-270D
Price:
Price:
$595.00
VOLUME-BASED PRICING
Quantity
Price
1+
$595.00
50+
$589.05
100+
$571.20
250+
$559.30
500+
$547.40
1000+
$535.50
2000+
$523.60
Availability:
In Production
Standard Lead Time:
6 - 8 Weeks
Qty:
+
-
Add to cart
Qty:
+
-
ADD TO QUOTE
Overview
Downloads
Custom Solutions
Wire Exits to a 270° bend
Input Charging Voltage: 20-36VDC
Output Voltage: 24VDC (unregulated)
Current: 10 Amps Continuous
Charges Battery in less than 6 Hours
Input power charges battery and simultaneously power load
Automatically switches over to battery power once external power is removed and back once power is restored
Switch time: 3 milliseconds from input power to battery power
State of Charge indicator (while charging)
Battery Fuel indicator (when on battery power)
Powers up as soon as externl power is applied
On/Off switch to power down circuit during storage
All SMBus pins populated
Cable length: 6 Feet
Wire: AWG 16/AWG 22, OD: .305"
Weight: 12 oz.
Watertight
Environmental strap impervious to UV light
Operating Temperature: -40°C to +60°C
Rugged Design to absorb impact
Great for use as battery backup
For Rechargeable BB-2590 Li-Ion Batteries
STEP CAD Model available upon request
Wire Exits to a 270° bend
Input Charging Voltage: 20-36VDC
Output Voltage: 24VDC (unregulated)
Current: 10 Amps Continuous
Charges Battery in less than 6 Hours
Input power charges battery and simultaneously power load
Automatically switches over to battery power once external power is removed and back once power is restored
Switch time: 3 milliseconds from input power to battery power
State of Charge indicator (while charging)
Battery Fuel indicator (when on battery power)
Powers up as soon as externl power is applied
On/Off switch to power down circuit during storage
All SMBus pins populated
Cable length: 6 Feet
Wire: AWG 16/AWG 22, OD: .305"
Weight: 12 oz.
Watertight
Environmental strap impervious to UV light
Operating Temperature: -40°C to +60°C
Rugged Design to absorb impact
Great for use as battery backup
For Rechargeable BB-2590 Li-Ion Batteries
STEP CAD Model available upon request
