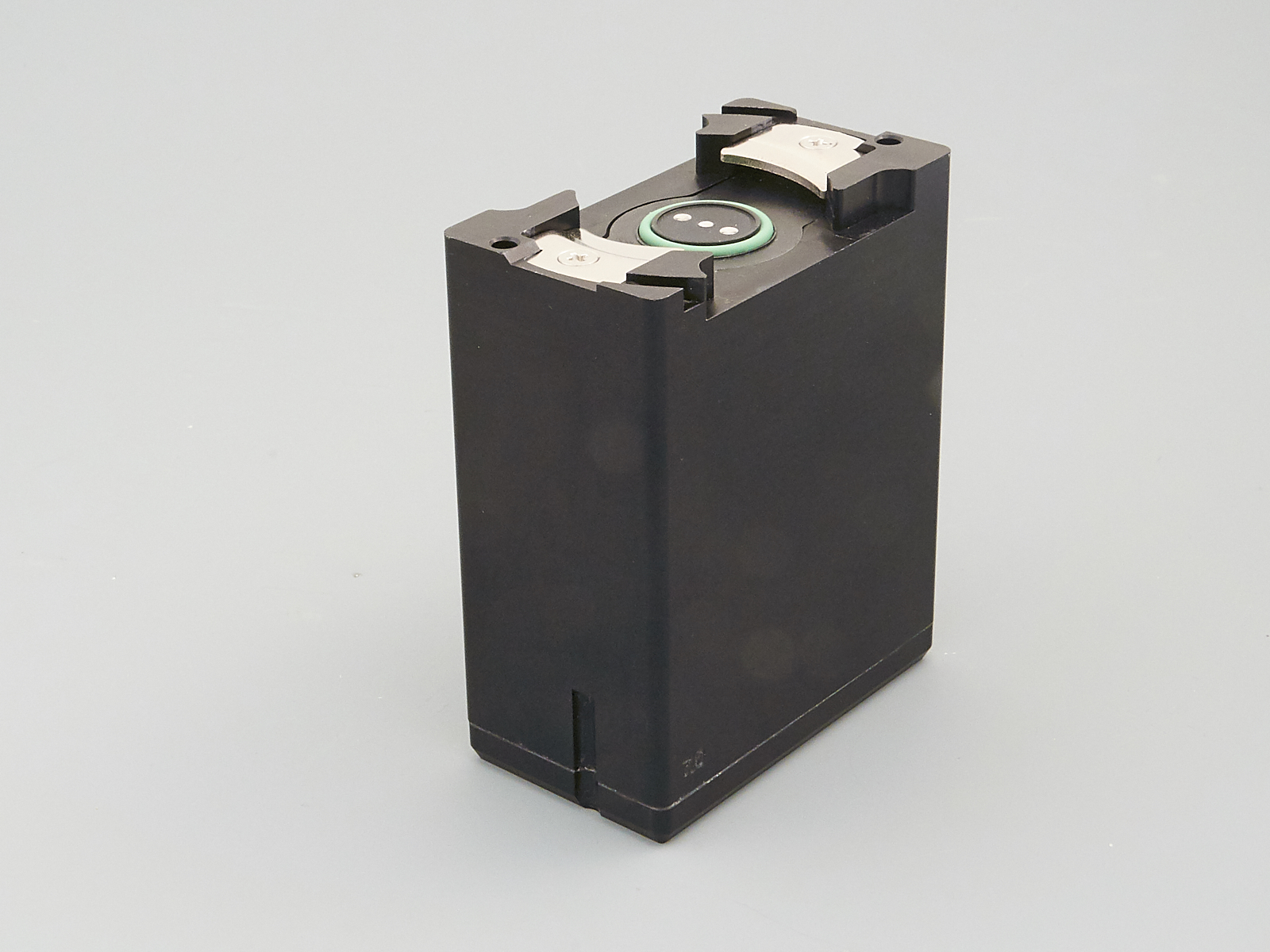

Thales AN/PRC-148 7.0 Ah Battery ( Metal Case )

Part Number: 1600842-1
$1,450.00
VOLUME-BASED PRICING
Quantity Price
1+
$1,450.00
50+
$1,450.00
100+
$1,450.00
250+
$1,450.00
500+
$1,450.00
1000+
$1,450.00
2000+
$1,450.00
7 Can Ship Immediately
6 - 8 Weeks
+ -
+ -

*** If shipping via FedEx or UPS Air Service, a HazMat fee of $45 will autoimatically be added to your shipping cost***

GENERAL SPECIFICATIONS

  • Long-Life Rechargeable Li-Ion Battery 7.0 Ah
  • Part Number: 1600842-1
  • Voltage: 12.65
  • Watt Hour Rating: 74Wh typical
  • Nominal Capacity: 6800mAh at 25°C
  • Mission Life: >15 hours run time at 5W with AN/PRC-148 MBITR and >12 hours with AN/PRC-148 JEM using TIA-603B duty cycle (80:10:10) @25°C

CHARGING PARAMETERS

  • Texas Instruments Impedance TrackTM
  • <1% error in battery lifetime,
  • Does not need Calibration Cycle
  • Over Discharge Zero-Voltage Charge Capable

  CYCLE LIFE:

  • After 300 full charge/discharge cycle, the battery will have > 70% of its nominal capacity
  • Equivalent Lithium Content (ELC): 6.12 grams
  • Testing and certification: United Nations Transportation of Dangerous Goods, Manual of Tests and criteria, part III subsection 38.3, class 9, Lithium batteries

PHYSICAL & ELECTRICAL PROPERITES

  • Finish: Matte Black
  • Height: 3.28 inches (8.33 cm)
  • Width: 2.63 inches (6.68 cm)
  • Depth: 1.52 inches (3.86 cm)
  • Volume: <13.5 cubic inches (221.2 cubic cm)
  • Weight: < .908 (411.0 g)
  • Voltage: 10.8V nominal
  • Peak Current: 8A

ENVIRONMENTAL PARAMETERS

  • Operating Temperature: -30 to +60°C (Reduced run time at lower temperatures)Storage Temperature: -40 to +71°C - (storage for long periods at extreme temperatures will cause degradation in performance)
  • Humidity: 95% non-condensing relative humidity at +60°C Per MIL- STD-810F, Method 507.4
  • Altitude: 37,000 (MIL-STD-810F) and 11.6kPa (50,000 feet) UN/ DOT
  • Immersion: 20 meters (MIL-STD-810F)
  • Drop: Per MIL-STD-810F, 1 meter on smooth concrete
  • Salt Fog: Per MIL-STD-810F, Method 509.4, Procedure I, battery shal be operational without corrosion when attached to AN/PRC-148 radio, or with the approved protective cap fitted to battery

ADDITIONAL FEATURES

    • Short Circuit Charge Protection
    • Over Current Charge Protection
    • Individual Cell over Voltage Protection
    • Battery Pack over Voltage Protection
    • Individual Cell under Voltage Protection
    • Battery Pack under Voltage (Over Discharge) Protection
    • Reverse Polarity Charge Protection
    • ESD protection per EN6100-4-2:2001-4 8KV contact and 15KV air
    • Charge Temperature: 0 to 50°C
    • Compatible with AN/PRC-161 BATS-D Radio




      Thales Charger Compatibility: UBC, UBC-Lite, eMBUC,MUBC, MA6751, legacy chargers such as 1600652, 1600653, 1600654, 1600689, 1600690
      Additional Charging Capability: Batteries can also be charged in Thales Base Station, Tactical Repeater, Vehicle Adapter, Vehicle Adapter Amplifier, Special
      Soldier Power Adapter Interface (SPAI)
      Replaces 1600515-7 (52Wh) battery



      *Notes: A Material Safety Data Sheet [MSDS] is not required for this part based on a Class 9 100Wh limit. This document can be used as a Product Safety Data Sheet [PSDS].
